Shandong Kaich Optical& Electronic Technology Co., Ltd

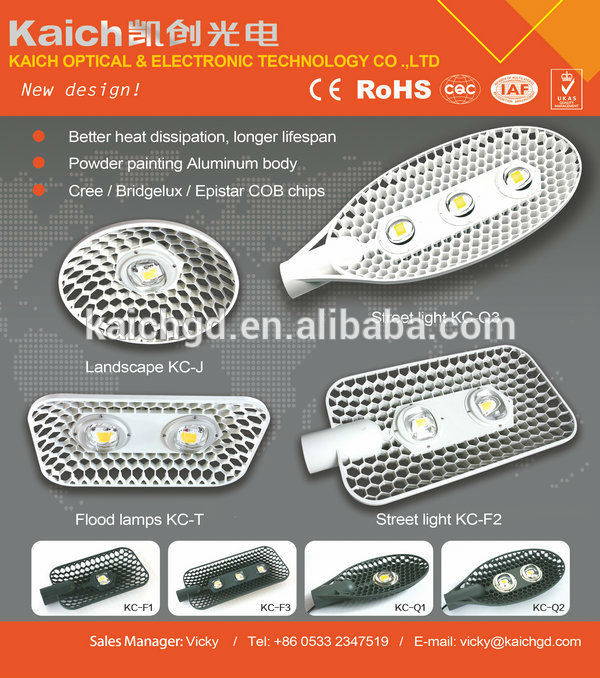

Led Street Light/solar Kaich Kc-q3 High Efficiency, Independent Patent, Low Cost, 120-240w

Led Street Light/solar Kaich Kc-q3 High Efficiency, Independent Patent, Low Cost, 120-240w
Item Code / Model Number:

Led Street Light/solar Kaich Kc-q3 High Efficiency, Independent Patent, Low Cost, 120-240w Led Street Light/solar Kaich Kc-q3 High Efficiency, Independent Patent, Low Cost, 120-240w
KAICH KC-Q3
High Efficiency,independent patent,low cost,20-80w solar LED street

Reasons you choose Kaich
The advanced nature of LED lights is determined by its cooling technology. Good heat dissipation structure will reduce the temperature of the LED chip and improve the conversion efficiency of light, to reduce light decay rate and extend the chip’s service life.

1.cooling technology:
Firstly:KAICH adopts an up-down through-hole heat dissipation structure, which is conducive to the flow of hot and cold air and allows the heat sink better.
Secondly, it adopts Hexagonal honeycomb through-hole structure, which is more conducive to diffuse the heat out of the center of the LED chip, so that the light shell’s cooling effect is better.
Contrast: Traditional LED lights use the heat-sink structure, which is not conducive to the rapid flow of hot and cold air, so that the cooling effect is poor.

2.Materials:
Cree/ Brigdelux chips, Meanwell drivers,die-casting aluminum lamp body.... Every detail is top-ranking.

3.Power supply:
Both electric supply and solor electric supply are available. About the design of power supply box,we have two types. You can choose either of lamp according to your condition.

4.independent patent lens,C92/X92:
With the use of high transmittance and high uniformity lens, the whole light's illumintaion unifomity and light intensity increases significantly.

5.integrated light source:
it adopts the integrated light source as the whole lamp light source, which greatly improves the efficiency of the whole lamp assembly and reduces the damage rate.

KC-Q3 Lamp Parameters

Model: KC-Q3
Power consumption: 120W/150W/180W/210W/240W
Luminous Flux: 10200-13200lm/12750-16500lm/15300-19800lm/17850-23100lm/20400-26400lm
Lamp Body Material: Die-casting aluminum
lamppost material: Q235
Lens: High transmittance organosilicon glass lens
Source type: integrated light source
Lighting effect: 100-120 lm/w
Input & Voltage: AC 110/220V & DC12/24V
Working Lifetime: >50000 hours
Warranty: 3 years
Color temperature: 3000-6000K
CRI: Ra>85
Power factor: >0.95
IP rating: IP65
Driver brand: Meanwell
Battery type: Gel lead-acid battery
Led chip brand: Cree / Bridgelux / Epistar
Material: Aluminum with powder painting
Angle of light diffusion : 160°*80°/170°*60°
Working temperature: -40°C~+50°C
Certification: CE ISO CQC Rohs
Colar: multicolor
Size: 750mm*330mm*92mm
Product net weight: 7.9 KG
Driver position: outside
Application : express way,urban arterial road
Installation height: 10-12m
Package: carton or wooden cases or Customers packing are acceptable
Drive mode: the city electricity ,solar energy

If you are interested in our roduct,add us!
skype:yufengbo333
phone:86-18353358283
wechat:18353358283
  • Place of Origin:
  • China
  • Brand:
  • Kaich
  • Unit Price:
  • USD 176-252
  • Price Terms:
  • FOB Qingdao
  • Packing:
  • carton / wooden case or as you required
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 7 days
  • Min Order Quantity:
  • 3pcs
  • Standard / Certificates:
  • CE ISO CQC
  • Keywords:
  • led street light, solar light, led light

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • China
  • Employee Count:
  • 200
  • Established Year:
  • 2006

Contact Information

  • Company Name:
  • Shandong Kaich Optical& Electronic Technology Co., Ltd
  • Country:
  • China
  • Address:
  • Kaich Industry Park, North End Of Zhongxuan Road, Linzi District, Zibo City, Shandong Province, China.
  • Website:
  • http://www.honeycombled.com
