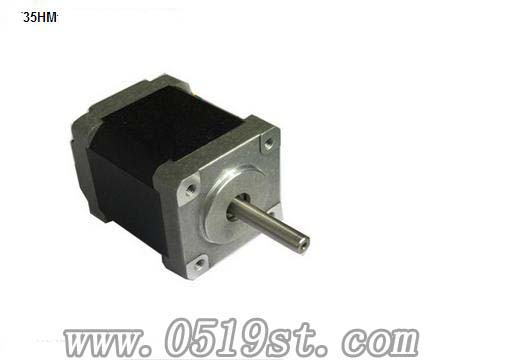

0.9degree35mm Hybrid Stepper Motor
0.9degree35mm Hybrid Stepper MotorItem Code / Model Number:
0.9degree35mm Hybrid Stepper Motor
ries Model Step angel Motor lengh Rated Current Phase Resistance Phase Inductance Holding torque Rotor Inertia Lead wire Motor weight
35HM200 0.9 20 0.4 5.8 2.7 0.5 8 4 85
35HM201 0.9 20 0.3 25 6.2 0.5 8 4 80
35HM2501 0.9 25 0.25 18.5 14.6 0.8 11 4 100
35HM2502 0.9 25 0.55 5.5 3.4 0.8 11 4 110
35HM301 0.9 34 0.3 25 25 1.8 13 4 180
35HM302 0.9 34 0.8 6.8 10 1.8 13 4 180
35HM360 0.9 34 0.4 28.5 13 1.2 13 6 180
35HM400 0.9 44 0.35 32.5 22 2.3 16 4 250
35HM402 0.9 44 1 3.6 4.32 2.5 16 4 250
35HM200 0.9 20 0.4 5.8 2.7 0.5 8 4 85
35HM201 0.9 20 0.3 25 6.2 0.5 8 4 80
35HM2501 0.9 25 0.25 18.5 14.6 0.8 11 4 100
35HM2502 0.9 25 0.55 5.5 3.4 0.8 11 4 110
35HM301 0.9 34 0.3 25 25 1.8 13 4 180
35HM302 0.9 34 0.8 6.8 10 1.8 13 4 180
35HM360 0.9 34 0.4 28.5 13 1.2 13 6 180
35HM400 0.9 44 0.35 32.5 22 2.3 16 4 250
35HM402 0.9 44 1 3.6 4.32 2.5 16 4 250
- Place of Origin:
- China
- Brand:
- Sutai
- Unit Price:
- USD 13
- Price Terms:
- FOB Shanghai
- Packing:
- standard packing
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1pcs
- Standard / Certificates:
- ISO9001 CE
- Keywords:
- stepper motor, 35mm, two-phase
