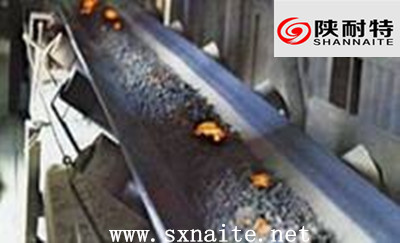

Heat-resisting Conveyor Belt

Features;
1st .Heat-resisting and abrasive resistance well ;
2nd. Under the design temperature, good use effect.
Specification & main technical parameters
Polyester polyamide (EP) canvas heat-resisting conveyor belt

Lengthwise full-thickness tensile strength N/mm Fabric Type Upper cover
rubber thickness mm Lower cover
rubber thickness mm Layer Reference weight
200~800 Ep100 3. 4.5 6.0 1.5 3.0 2~8 1.3
315~1250 Ep150 3. 4.5 6.0 1.5 3.0 2~8 1.4
400~1500 Ep200 3. 4.5 6.0 1.5 3.0 2~8 1.5
500~2000 Ep250 3. 4.5 6.0 1.5 3.0 2~8 1.7
500~2000 Ep300 3. 4.5 6.0 1.5 3.0 2~8 1.8
630~2500 Ep400 3. 4.5 6.0 1.5 3.0 2~7 2.1

Layer-to-layer bond strength

Item Cloth and cloth adhesive strength Cover layer and core bond strength
All sample average ≥4.5 ≥3.2
All sample minimum peak ≥3.9 ≥2.4
Remark: All saeak do not exceed 20N/m
