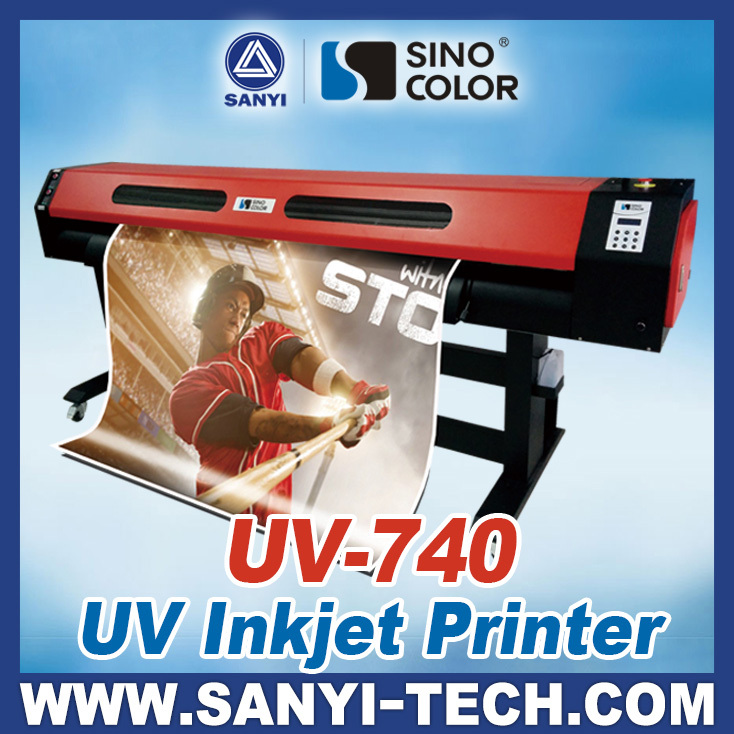

Hybrid UV Led Printer UV-740, Roller & Flatbed available

Model No.: UV-740

Printhead: Dual / Single Epson DX7

Resolution (dpi): 1440dpi max

Ink Color: C M Y K (White optional)

Media Width: 1.6m (64 inch) / 1.8m (74 inch) / 3.2m (126 inch)

Types: Canvas, Garment, Leather, PET Film, Reflective Film, Soft Ceiling Film, Flexible Packaging Material and a lot more flexible material...

Ink Type: UV Curable Ink

Curing Method: Air Cooled UV-LED Lamp (USA)

Cleaning System: Automatic Cleaning, Anti-Clogging Flash Function & Capping System

Feeding and Take-up: Automatic Media Feeding & Take-up System

Environment: Temperature:20-28C,Humidity:40%-60%

Rip Software: PhotoPrint / MainTop

Interface: USB2.0

Power: Machine 50/60HZ, 110 / 220V, 2000W

Machine Size: L2470xW650xH1100mm / L2960xW800xH1270mm / L4360xW800xH1270mm

Packing Size: L2570xW750xH800mm / L3060xW900xH700mm / L4460xW900xH700mm


Features of Our UV Printer

Unsurpassed Media Compatibility

The SinoColor UV-740 UV printer supports printing on BOPP, PE, PET film, offset printing stock and more. The low heat UV LED lamps allow printing on heat-sensitive media such as shrink wrap, pressure sensitive media and paper stocks with no risk of damaging the substrate.
State of the Art Curing System for Matte and Gloss Finishes

The UV-740's ability to reposition its twin UV-LED lamps automatically increases productivity in high quality modes and allows simulation of matte and gloss varnishing effects.
Longer Life

UV-LED lamps last up to 10,000 hours, ten times longer than conventional UV lamps.
Low Heat

While conventional UV lamps can reach temperatures as high as 1500°F (800°C) requiring complex heat management systems, the LED lamps on the UV-740 generate very little heat. This ensures that the UV lamps virtually eliminate any heat-related risks such as substrate damage and head crash caused by media deformation.
Instant On/Off

LED lamps can be turned on and off instantly and are ready to use immediately after the printer is turned on. By contrast, conventional curing systems may take up to ten minutes to reach the targeted output level. Conventional curing systems also require complex, noisy and failure-prone shutter systems to protect substrates and head capping systems from exposure to UV light and heat.
Advanced Media Take-Up System

The UV printer UV-740 includes an automated media take-up system to facilitate precision unattended printing when using roll media. This pre-assembled unit includes an advanced tension-controlled take-up system for optimum media feed and tracking.
Reliability

As with all SinoColor inkjet printers, the UV-740 is a virtually bulletproof production machine. With regular maintenance, it will provide years of trouble-free service.


Packing & Shipping
Packing: 1 Set UV Printer in One Wooden Case
Delivery Lead Time: Within 8 Wokirng Days
Shipping: We have regular forwarder, have cooperated for many years. Can help send goods by sea or by air smoothly.


How to order?

1. After confirmed UV Printer order details, we will make Proforma Invoice for you.

2. After received your downpayment, will start test machine carefully. Ensure the excellent performance.

3. After tested the machine, will pack and send out.

4. When you received the printer, there is user manual and video to guide you install,operate and maintain.

5. When any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or Teamviewer. So you can rest assured about the after service.

6. We provide free training in our factory. When order several sets, can also send technician to your place. Help set up machine, and provide training to your staff.
