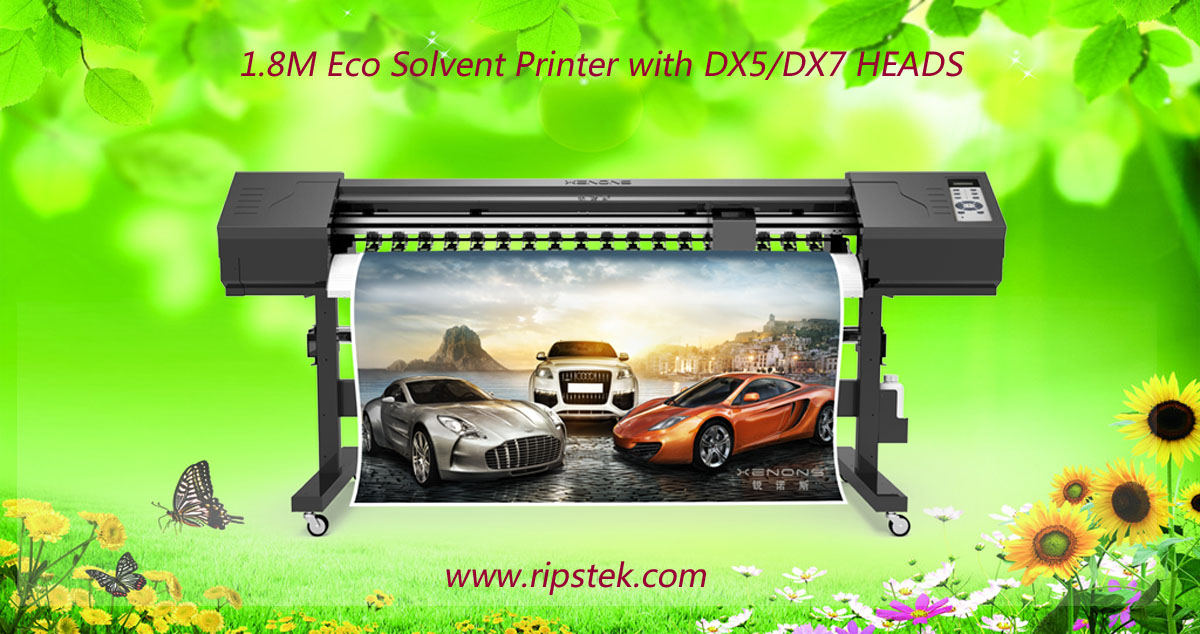

Epson Eco solvent printer

Type X2A- Eco Solvent Printer
Print Head
One /Two DX7 Drop-on-demand Micro-Piezo Print Heads

Number of Nozzles 1440 Nozzles (1/2 Heads)

Color 4 Colors：Cyan, Magenta, Yellow, Black
Resolution 1440dpi (max)/1440dpi
Height of Print Head 2-5mm
Size of Ink Droplet 1.5-21 pl
Max. Print Width 1800mm
Max. Media Width 1900mm (max)/1900mm
Real Time Tracking None
Print Speed 3pass Standard mode 17㎡/hr 28㎡/hr
4pass High quality mode 12㎡/hr 21㎡/hr
6pass Precision mode 8㎡/hr 15㎡/hr
8pass High-precision mode 5㎡/hr 7㎡/hr
Media Feeder
Yes
Media Take-up Yes
Material
max weight 200kgs
application type Flex,Banner,Knife Coated Substrate,Double Side Printing Banner PVC,Advertising Cloth,Adhesive Vinyl,One Way Vision, Mesh,Reflective Banner,Reflective Vinyl，Eco Solvent Media

Ink Type Eco Solvent Ink

Ink tank account
8*350ml continuous ink supply
Auto cleanning system yes
Interface USB2.0
Power Power Voltage AC220-240V 50-60HZ or AC110-120V 50-60HZ
Control Software Print Console
Rip software Maintop (Photoprint, Wasatch Option)
Operation System MS Windows XP & Windows 7
Printing Environment Temperature:18-32℃ Humidity:46-65%Rh
Printer Dimension/ Net Weight W4560*D720*H1330mm/220kgs
Packing Dimension/ Gross Weight W4700*D760*H1680mm/300kgs
