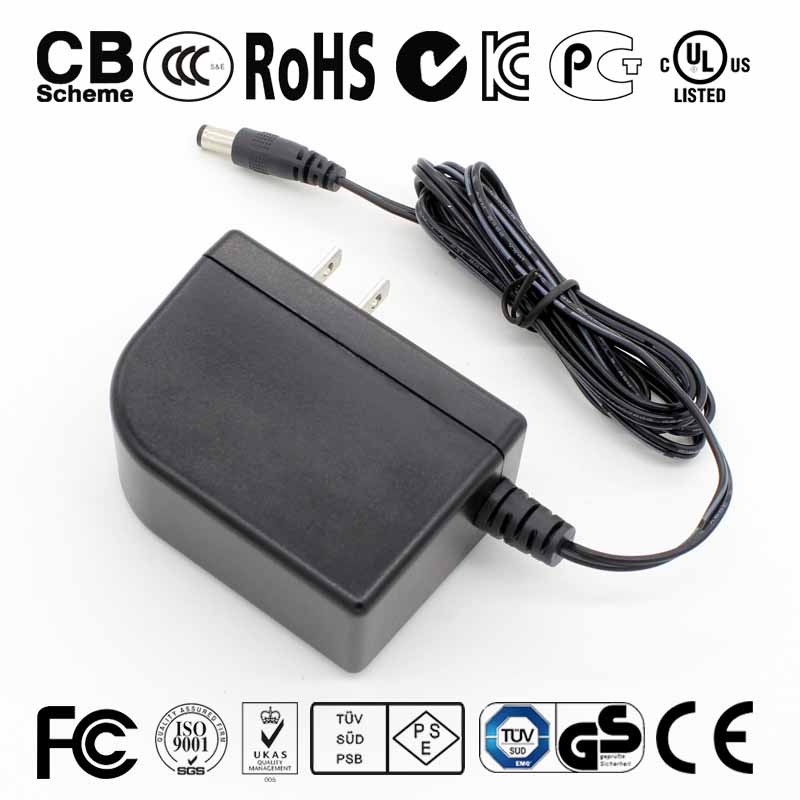

24w Ac/dc Adapter Swithcing Power Supply
24w Ac/dc Adapter Swithcing Power Supply, MKS-2401000Item Code / Model Number:
MKS-2401000
24w Ac/dc Adapter Swithcing Power Supply
Product Description
1, technical information:
Plug-In Mains Connector EU
Input Condition AC100-240V 50/60 Hz
Input Rated Voltage 100Vac-240Vac
Input Voltage Range 90Vac-264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz-63Hz
Input Current 0.35A Max
Input Inrush Current 30A Max
Rated Output Voltage & Current 24V & 1.0A
Output power 24W Maximum
Output Line Regulation ± 1%
Output Load Regulation ± 5%
Output Over Shoot 10% Maximum
Output Ripple And Noise 100mVp-p Max
Output Rising Time 20ms Maximum At 115Vac
Output Hold up Time 10ms Minimum At 230Vac
No Load Power Consumption 0.3W Max At 115Vac/230Vac
Efficiency Conform to Level V (CEC/ERP/MEPS)
Protection OCP OVP OTP OLP
Dielectric Withstand Voltage 3KV 5mAnbsp; 60s
Leakage Current 0.25 mA At 230Vac
DC Plug Specification According to the customer' s requirements
Operating Temperature Range 0--40 degrees
Storage Temperature Range -20--60 degrees
2,application :
Consumer Electronics Products, Toys, DVD/ MP3/MP4, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on.
3, reliability:
Fault-free time: 50, 000 hours, -25 degree celsius (according to the mil-HD-217 standard)
4,Protection
Short circuit protection
Over voltage protection
Over current protection
Thermal shutdown capability
5, SAFETY APPROVALS:
UL 60950-1,2nd Edition,2011-12-19
UL 1310 Sixth Edition, Dated August 26,2011
CSA C22.2 No. 60950-1-07,2nd Edition,2011-12-19
CAN/CSA-C22.2 No.223-M91:1991
EN 60950-1:2006+A11:2009
EN 60950-1:2006+A11:2009+A1:2010
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE(Low Voltage Directive)
IEC 60950-1:2005+A1:2009
AS/NZS 60950.1:2011 Amendment 1
PSE IEC60950
GB4943.1-2011
1, technical information:
Plug-In Mains Connector EU
Input Condition AC100-240V 50/60 Hz
Input Rated Voltage 100Vac-240Vac
Input Voltage Range 90Vac-264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz-63Hz
Input Current 0.35A Max
Input Inrush Current 30A Max
Rated Output Voltage & Current 24V & 1.0A
Output power 24W Maximum
Output Line Regulation ± 1%
Output Load Regulation ± 5%
Output Over Shoot 10% Maximum
Output Ripple And Noise 100mVp-p Max
Output Rising Time 20ms Maximum At 115Vac
Output Hold up Time 10ms Minimum At 230Vac
No Load Power Consumption 0.3W Max At 115Vac/230Vac
Efficiency Conform to Level V (CEC/ERP/MEPS)
Protection OCP OVP OTP OLP
Dielectric Withstand Voltage 3KV 5mAnbsp; 60s
Leakage Current 0.25 mA At 230Vac
DC Plug Specification According to the customer' s requirements
Operating Temperature Range 0--40 degrees
Storage Temperature Range -20--60 degrees
2,application :
Consumer Electronics Products, Toys, DVD/ MP3/MP4, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on.
3, reliability:
Fault-free time: 50, 000 hours, -25 degree celsius (according to the mil-HD-217 standard)
4,Protection
Short circuit protection
Over voltage protection
Over current protection
Thermal shutdown capability
5, SAFETY APPROVALS:
UL 60950-1,2nd Edition,2011-12-19
UL 1310 Sixth Edition, Dated August 26,2011
CSA C22.2 No. 60950-1-07,2nd Edition,2011-12-19
CAN/CSA-C22.2 No.223-M91:1991
EN 60950-1:2006+A11:2009
EN 60950-1:2006+A11:2009+A1:2010
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE(Low Voltage Directive)
IEC 60950-1:2005+A1:2009
AS/NZS 60950.1:2011 Amendment 1
PSE IEC60950
GB4943.1-2011
- Place of Origin:
- Made-in-china
- Brand:
- Merryking
- Unit Price:
- USD 4
- Price Terms:
- FOB Shenzhen
- Packing:
- 1PC/Box, 174PCS/Case
- Payment Terms:
- L/C;T/T;D/P
- Delivery Time:
- 15-20 days
- Min Order Quantity:
- 500pcs
- Standard / Certificates:
- UL FCC PSE CE SAA CCC CB GS
- Keywords:
- ac dc adapter, swithcing power supply, 24w ac dc adapter
