Copper Welding Wire with Anti-pore Property
Copper Welding Wire with Anti-pore PropertyItem Code / Model Number:
Copper Welding Wire with Anti-pore Property
COPPER COATED WELDING WIRE WITH FAST MELTING RATE
Copper coated welding wire is the main product of welding wire. It is used very extensively, because of its good welding performance and higher efficiency in welding. And it is suitable for pure CO2 and argon and CO2 mixed gas as the shielded gas. Therefore, there are many factories that manufacture copper welding wire in the world.
The production process of copper coated welding wire is shown below: firstly, its raw material is wire rod. Secondly, the wire rod goes through two wire drawing process. Thirdly, the step is the copper plating line. Next, the wire is spooled by the wire winding machine. Then the welding wire is inspected and packed in different forms. Delivering the goods to customers is the last step.

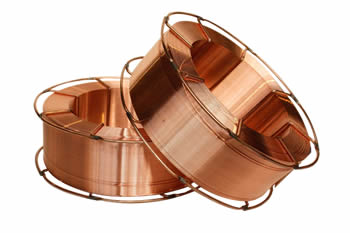

Two baskets copper welding wire, one leans against another.
Basket-packaged copper welding wire has beautiful appearance.Copper welding wire winded on a black plastic spool orderly.
Spool-packaged copper welding wire is cheaper for extensive application.
Copper welding wire wrapped into a round shape with four strings bind.
Coil-packaged copper welding wire has the most simple package for seen directly.Drums wrapped into plastic film, placed on a wooden pallet, top wooden board, with strings fixed them into a whole.
Copper welding wire put into drums makes its transportation safer.
Application:
Copper coated welding wire is mainly used to weld copper and copper alloys, such as vessels, vehicles, bridges, construction or engineering machinery, pressure vessels, agricultural equipment, pipe of high speed welding, steam and hot water boilers and so on.
A man with gloves is welding a piece of iron plate.
Welding makes two articles become a whole beautifully.A short tube is welded with two bends to make up a tee joint.
The application of copper welding wire makes the seam more beautiful.
Main Characteristics:
Excellent welding technical performance with stable electric arc, good welding seams, less spatters and good anti-pore property.
Higher deposition efficiency.
Fast melting rate.
Details:
Material: carbon steel or low alloy steel.
Surface treatment: copper coated.
Diameter: 0.6-5.0mm.
Package:
0.5-20kg/plastic spool, each plastic spool in a carton, cartons on wooden pallets.
15-20kg/coil, then put coils in drums, 4 drums on a wooden pallet.
0.5-15kg/basket.
Copper coated welding wire chemical composition
C Si Mn S P Cu
0.06 ~ 0.15 0.80 ~ 1.15 1.40 ~ 1.85 ≤0.025 ≤0.025 ≤0.50
Copper coated welding wire mechanical properties
Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
≥500 ≥420 ≥22
Copper coated welding wire is the main product of welding wire. It is used very extensively, because of its good welding performance and higher efficiency in welding. And it is suitable for pure CO2 and argon and CO2 mixed gas as the shielded gas. Therefore, there are many factories that manufacture copper welding wire in the world.
The production process of copper coated welding wire is shown below: firstly, its raw material is wire rod. Secondly, the wire rod goes through two wire drawing process. Thirdly, the step is the copper plating line. Next, the wire is spooled by the wire winding machine. Then the welding wire is inspected and packed in different forms. Delivering the goods to customers is the last step.
Two baskets copper welding wire, one leans against another.
Basket-packaged copper welding wire has beautiful appearance.Copper welding wire winded on a black plastic spool orderly.
Spool-packaged copper welding wire is cheaper for extensive application.
Copper welding wire wrapped into a round shape with four strings bind.
Coil-packaged copper welding wire has the most simple package for seen directly.Drums wrapped into plastic film, placed on a wooden pallet, top wooden board, with strings fixed them into a whole.
Copper welding wire put into drums makes its transportation safer.
Application:
Copper coated welding wire is mainly used to weld copper and copper alloys, such as vessels, vehicles, bridges, construction or engineering machinery, pressure vessels, agricultural equipment, pipe of high speed welding, steam and hot water boilers and so on.
A man with gloves is welding a piece of iron plate.
Welding makes two articles become a whole beautifully.A short tube is welded with two bends to make up a tee joint.
The application of copper welding wire makes the seam more beautiful.
Main Characteristics:
Excellent welding technical performance with stable electric arc, good welding seams, less spatters and good anti-pore property.
Higher deposition efficiency.
Fast melting rate.
Details:
Material: carbon steel or low alloy steel.
Surface treatment: copper coated.
Diameter: 0.6-5.0mm.
Package:
0.5-20kg/plastic spool, each plastic spool in a carton, cartons on wooden pallets.
15-20kg/coil, then put coils in drums, 4 drums on a wooden pallet.
0.5-15kg/basket.
Copper coated welding wire chemical composition
C Si Mn S P Cu
0.06 ~ 0.15 0.80 ~ 1.15 1.40 ~ 1.85 ≤0.025 ≤0.025 ≤0.50
Copper coated welding wire mechanical properties
Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
≥500 ≥420 ≥22
