China Deyuan Marine Fitting Co., Ltd

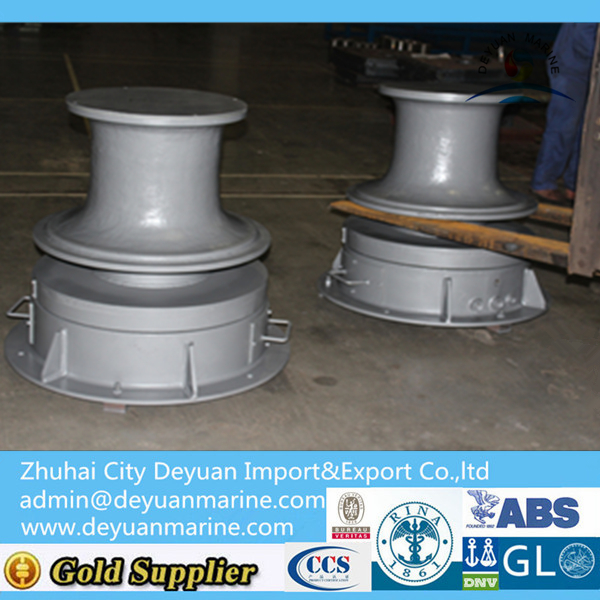

Electric mooring rope capstan

Electric mooring rope capstan
Item Code / Model Number:

Electric mooring rope capstan Electric mooring rope capstan
- various sizes can be provided.
- produce acc. to customer's drawings.
- with ABS, BV, CCS ,DNV,RINA,KR,LR certificates.

Electric mooring rope capstan
We,China Deyuan marine fitting Co.,ltd ,can provide different types of electric warping hawser capstan and electric or hydraulic mooring capstan.Pls feel free to contact us for more details.

Size Mooring load
(KN) Moorin speed
(mm) Wire rope dia.
(mm) Motor power
(KW)
electric hydraulic
5KN 5 ≥18 Φ11 3/1.2 5.5
10KN 10 ≥18 Φ11 4.3/1.7 7.5
15KN 15 ≥18 Φ13 8.5/3.5 11
20KN 20 ≥18 Φ15 11/11/7.5 1.5
30KN 30 ≥18 Φ17.5 16/16/11 18.5
50KN 50 ≥18 Φ20.5 16 30
70KN 70 ≥15 Φ26 22 45
100KN 100 ≥15 Φ28 45/45/30 55
120KN 120 ≥15 Φ32.5 60/60/45 75
150KN 150 ≥15 Φ36.5 60/60/45 90
200KN 200 ≥15 Φ40 75/75/36 110
250KN 250 ≥12 Φ46 75/75/36 110
  • Place of Origin:
  • China
  • Brand:
  • Deyuan
  • Unit Price:
  • USD 1000
  • Price Terms:
  • FOB Shanghai
  • Packing:
  • wooden case
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 30 days
  • Min Order Quantity:
  • 1pcs
  • Standard / Certificates:
  • ABS,CCS,,,
  • Keywords:
  • electric mooring rope capstan
