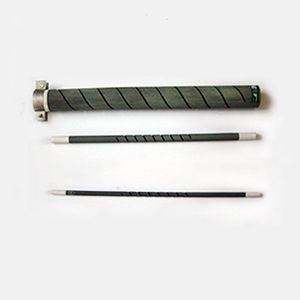

Sic Heating Element

Type: ED Outer diameter: OD, mm
Hot zone length: HZ, mm
Cold end length: CZ, mm
Overall length: OL, mm

Examples：
ED type，OD=54MM，HZ=1575mm，CZ=419mm，
OL=2413mm，Resistance0.90
Specify as:
Songshan Slica ED, 54/1575/2413/0.90Ω

The silicon carbide heating element is a kind of nonmetal high temperature electric heating element. It is
made of selected super quality green silicon carbide as main material.which is made into blank,silicided
under high temperature and re-crystallized. Compared with metal electric heating element,this kind of element is characterized by highapplied
temperature,antixidization,easy installation and maintenance. Therefore, it is widely used in various
high temperature electric furnaces and other electric heating devices, such as in the industries of magnet,
ceramice, powder metallurgy, glass metallurgy and machinery,etc.
We adopt new production process of cold ends so that our SiC heating elements have more excellent specific
rate of heat zone resistance and cold end resistance, saving energy, long life, avoiding overemperature
of cold ends to damage the furnace body. The commercial name of our SiC heating elements is Songshan Silca
heating elements.
