P12RV5
P12RV5, P12RV5Item Code / Model Number:
P12RV5
P12RV5

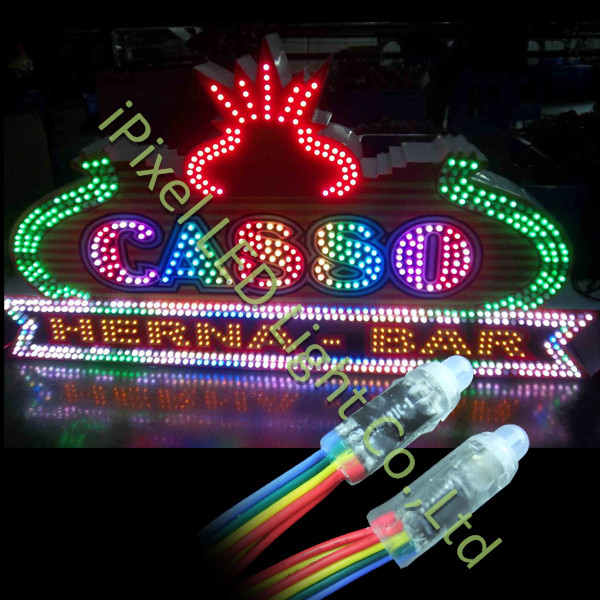

This addressable round LED pixel have 50pcs in a string
8cm 20AWG wire length between each LED,wire size:20A G
It used a silicon case make waterproof by inject A/B Epoxy
12mm diameter 35mm deep from the top of the LED to the back of the rubber
DC5V power requirement only(do not exceed 6VDC or short circuit) - no polarity protection
4Pin JST SM connector (non-waterproof) soldered in each end of string
The extra 2 single wire for powering in input side
(We also have other chip version:WS2811,LPD6803,SM16716)
8cm 20AWG wire length between each LED,wire size:20A G
It used a silicon case make waterproof by inject A/B Epoxy
12mm diameter 35mm deep from the top of the LED to the back of the rubber
DC5V power requirement only(do not exceed 6VDC or short circuit) - no polarity protection
4Pin JST SM connector (non-waterproof) soldered in each end of string
The extra 2 single wire for powering in input side
(We also have other chip version:WS2811,LPD6803,SM16716)
- Place of Origin:
- shenzhen,China (Mainland)
- Brand:
- iPixel LED
- Unit Price:
- USD 0.32
- Price Terms:
- FOB 0.28
- Packing:
- 50pcs per set ,350pcs per anti-static bag ,3000pcs per carton ,size :46.5*26*46cm, GW :23.5kg
- Payment Terms:
- L/C;D/A;T/T;D/P
- Delivery Time:
- 3-5 working days
- Standard / Certificates:
- CE&RoHS certifications
- Keywords:
- 12mm round, addressable, led pixel
