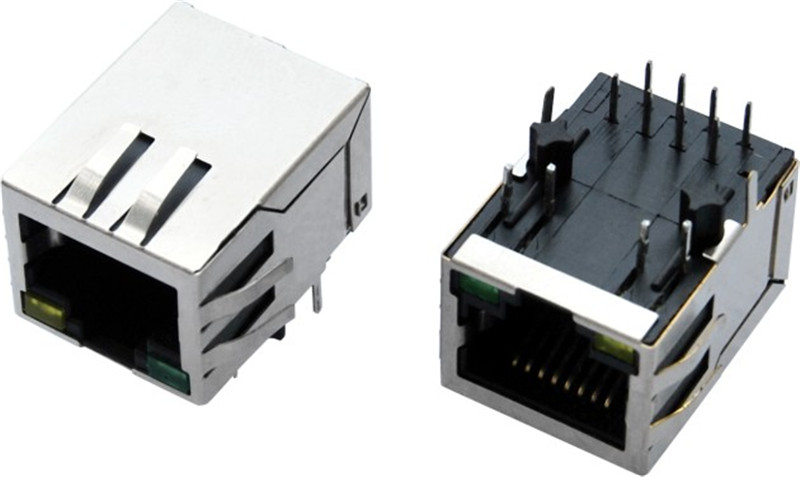

10P8C 10/100Base-T magnetic RJ45 modular jack, shielded, built in LED, with EMI fingers

RJ45 with integraged magnetics for 10/100Base-T
Available with or without LED
With EMI fingers
Single port tab-down DIP type
Size: 21.34 x 15.9 x 13.7mm
8 or 10-pin signal pin versions are available
High performance for maximum EMI suppression

Material
Insulator: High Temp Nylon flammability rating UL94V-0. Available in black, yellow, blue, and red
Contacts: Phosphor Bronze with gold thickness options(6u”, 15u”, 30u”, 50u”) over 50u” minimum nickel on contact mating area
Shield: Copper alloy with nickel plating
LED: Tin plating on LED tail. Epoxy lens.
Electrical
Voltage Rating: 125 V AC(RMS)
Current Rating: 1.5 AMP
Contact Resistance: 20mΩ Max.
Insulation resistance: 500MΩ Min.
Dielectric withstanding voltage: 1000 VAC RMS 60Hz, 1 Min.
Mechanical
Durability: 750 mating & unmating cycles
Mated Retention Force: 7.7kg
Operating Temperature: -40°C to +85°C
