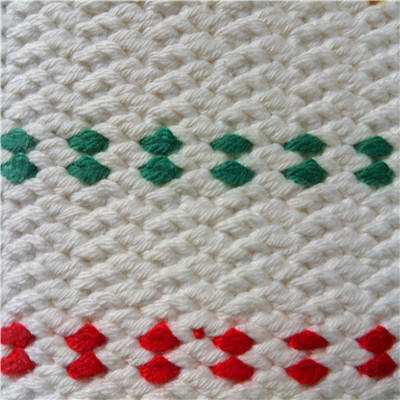

Corrugator Belt

Specifications
Woven Corrugated Belt can be divided into woven middle speed corrugator Belt, High speed corrugator belt with low noise, Enhanced middle speed corrugator belt Enhanced high speed corrugator belt (low noise) and Hydrophilic type woven corrugator belt and Traction Belt/Stack Belt

High speed corrugator Belt with Low Noise was developed to cooperate the high speed running and rapid dying of the corrugated board. The unique structure and the high-quality Pet facilitates steam evaporation from the paperboard.The twill weave surface of the belt helps to reduce the noise and increase the friction coefficient.
Enhanced corrugator Belt with kevlar edge is a consistent development based on the high speed corrugator belt. Kevlar fibers is characterised with good heat-resistence and abrasion-resistence.Because of the frequently changing paperboard widths and load requirement,the usage of kevlar fibers ensure the heat-resistence and wear-resistence ability of corrugator belt and prolong the lifespan.
Material:100%PET
Width:1200-3200mm
Thickness:within 10mm
Applt speed:100m-300m/min
Air-permeability:Up to 2.08m3/m2 min
Heat resistance:180 Centigrade -200 Centigrade
Fasteners Clipper Steel

Products Features
1.Heat Resistance
2.Easily cleaned
3.Long life time
4.Stable Dimension
5.High Tensile Strength
6.Good Air-permeability
7.Good Moisture Adsorption
8.Suitability: Suitable for linear speed 100m-300m/min

Application
Woven Corrugated Belt is a special part of corrugated machine automatic production line. Its main function is to ensure the smooth of paperboard transportation and the rapid evaporation of the water inboard.It is also used in honeycomb paperboard factory and cardboard factory.
