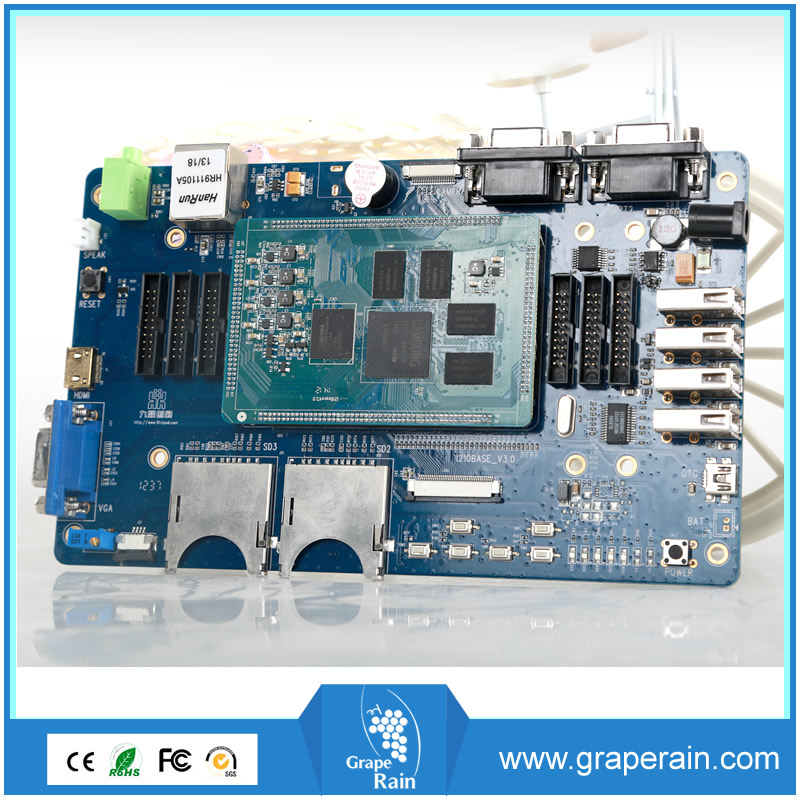

The Whole Set Development Board S5PV210 WIFI Development Kit

The Whole Set Development Board S5PV210 WIFI Development Kit

WIFI Development Kit Specifications
CPU: S5PV210AH-A0,ARM Cortex A8,1GHz
RAM: K4T1G164QE-HCF7,DDR2,512MBytes
inand: NCEMBS41-04G, 4GB
Battery: 7~9V battery holder
Power: 9V DC power supply
Features
On board Network: 10/100/1000Mbps ethernet (Realtek DM9000CEP)
Bluetooth: Optional
On board Storage: MicroSD (TF) card, SATA 2.0
Display:
Supports multi-channel HD display:
HDMI 1.4 (Type A - full)
LVDS/RGB/CPU display interface (DSI) for raw LCD panels
11 HDMI resolutions from 640*480 to 1920*1080 plus various PAL and NTSC standards
Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out)
Video:
HD H.264 2160p video decoding
Mutil-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc
H.264 high profile 1080p*30fps or 720p*60fps encoding
Audio outputs:
HDMI,analog audio (via 3.5 mm TRRS jack shared with composite video out),
I2S audio (also potentially for audio input)
Camera : Standard 24 pin camera interface
Audio input: On board micphone
USB: 4 USB 2.0 host, 1 USB 2.0 OTG
Buttons:
Reset button
Power button
Leds:
Power status led (red)
Ethernet status led (blue)
User defined led (green)
Other: IR receiver
Sizes : 185mm*110mm
