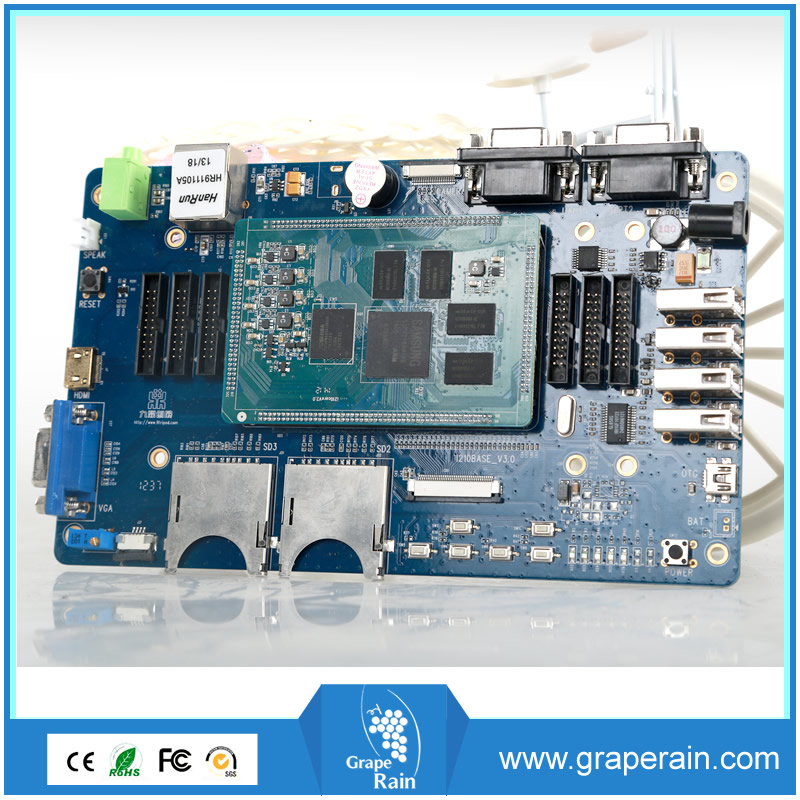

Sell The Whole Set Development Board S5PV210 WIFI Development Kit
Sell The Whole Set Development Board S5PV210 WIFI Development KitContinuous Selling Item
The Whole Set Development Board S5PV210 WIFI Development Kit
WIFI Development Kit Specifications
CPU: S5PV210AH-A0,ARM Cortex A8,1GHz
RAM: K4T1G164QE-HCF7,DDR2,512MBytes
inand: NCEMBS41-04G, 4GB
Battery: 7~9V battery holder
Power: 9V DC power supply
Features
On board Network: 10/100/1000Mbps ethernet (Realtek DM9000CEP)
Bluetooth: Optional
On board Storage: MicroSD (TF) card, SATA 2.0
Display:
Supports multi-channel HD display:
HDMI 1.4 (Type A - full)
LVDS/RGB/CPU display interface (DSI) for raw LCD panels
11 HDMI resolutions from 640*480 to 1920*1080 plus various PAL and NTSC standards
Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out)
Video:
HD H.264 2160p video decoding
Mutil-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc
H.264 high profile 1080p*30fps or 720p*60fps encoding
Audio outputs:
HDMI,analog audio (via 3.5 mm TRRS jack shared with composite video out),
I2S audio (also potentially for audio input)
Camera : Standard 24 pin camera interface
Audio input: On board micphone
USB: 4 USB 2.0 host, 1 USB 2.0 OTG
Buttons:
Reset button
Power button
Leds:
Power status led (red)
Ethernet status led (blue)
User defined led (green)
Other: IR receiver
Sizes : 185mm*110mm
WIFI Development Kit Specifications
CPU: S5PV210AH-A0,ARM Cortex A8,1GHz
RAM: K4T1G164QE-HCF7,DDR2,512MBytes
inand: NCEMBS41-04G, 4GB
Battery: 7~9V battery holder
Power: 9V DC power supply
Features
On board Network: 10/100/1000Mbps ethernet (Realtek DM9000CEP)
Bluetooth: Optional
On board Storage: MicroSD (TF) card, SATA 2.0
Display:
Supports multi-channel HD display:
HDMI 1.4 (Type A - full)
LVDS/RGB/CPU display interface (DSI) for raw LCD panels
11 HDMI resolutions from 640*480 to 1920*1080 plus various PAL and NTSC standards
Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out)
Video:
HD H.264 2160p video decoding
Mutil-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc
H.264 high profile 1080p*30fps or 720p*60fps encoding
Audio outputs:
HDMI,analog audio (via 3.5 mm TRRS jack shared with composite video out),
I2S audio (also potentially for audio input)
Camera : Standard 24 pin camera interface
Audio input: On board micphone
USB: 4 USB 2.0 host, 1 USB 2.0 OTG
Buttons:
Reset button
Power button
Leds:
Power status led (red)
Ethernet status led (blue)
User defined led (green)
Other: IR receiver
Sizes : 185mm*110mm
- Place of Origin:
- China
- Brand:
- Graperain
