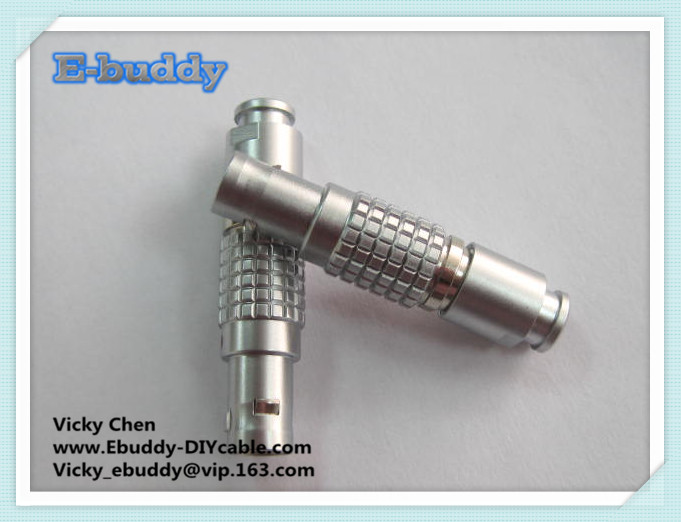

Lemo Connector 0b 2pin Waterproof Ip50 Plug Fgg.0b.302.clad
Lemo Connector 0b 2pin Waterproof Ip50 Plug Fgg.0b.302.clad, FGG.0B.302.CLADItem Code / Model Number:
FGG.0B.302.CLAD
Lemo Connector 0b 2pin Waterproof Ip50 Plug Fgg.0b.302.clad
Lemo connector FGG 0B 2pin male plug FGG.0B.302.CLAD
Specfication lemo
Configuration Brass (gold plated)
Insulator P: PPS
Specifications Low Voltage
Contact Type: Solder
Max. Matings: 5000
Vtest (contact-shell): 1450 V
Vtest (contact-contact): 1150V
Temp (min) —40 °C
Temp (max): 125 °C
Humidity (max): <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
P op (max): 60 bar (870 psi)
Main features B series compatible lemo connector :
The B series offer protection against accidental contamination or damage to the fiber and face because the ferrules are recessed within the connector shell. This top of the line connectors also has a choice of configurations of multi fiber or mixed optical/electrical contacts which makes this very convenient and adaptable. What made this connector unique is the security of the Push-Pull self-latching system is also included. For added value and flexibility, the 2B-5B connector series is consist of 15 models and the possible outer cable diameters of the said models range from 1.5 to 25 mm.
Application Fields of Connectors:
• Test & Measurement• Medical• Broadcast• Military
• Research• Communications • Automotive• Motorsport
Quantity control and our service:
----We test each item before shipping to ensure they are in good condition.
----We offer you fast shipping, usually around 5 days preparation. This is an approximate time, your shipment date would be up to your specific orders.
----We would let you know the tracking number once we’ve sent
Specfication lemo
Configuration Brass (gold plated)
Insulator P: PPS
Specifications Low Voltage
Contact Type: Solder
Max. Matings: 5000
Vtest (contact-shell): 1450 V
Vtest (contact-contact): 1150V
Temp (min) —40 °C
Temp (max): 125 °C
Humidity (max): <=95% [at 60 deg C / 140 F]
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Spray Corrosion >144 hr
IP Rating 50
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
P op (max): 60 bar (870 psi)
Main features B series compatible lemo connector :
The B series offer protection against accidental contamination or damage to the fiber and face because the ferrules are recessed within the connector shell. This top of the line connectors also has a choice of configurations of multi fiber or mixed optical/electrical contacts which makes this very convenient and adaptable. What made this connector unique is the security of the Push-Pull self-latching system is also included. For added value and flexibility, the 2B-5B connector series is consist of 15 models and the possible outer cable diameters of the said models range from 1.5 to 25 mm.
Application Fields of Connectors:
• Test & Measurement• Medical• Broadcast• Military
• Research• Communications • Automotive• Motorsport
Quantity control and our service:
----We test each item before shipping to ensure they are in good condition.
----We offer you fast shipping, usually around 5 days preparation. This is an approximate time, your shipment date would be up to your specific orders.
----We would let you know the tracking number once we’ve sent
- Place of Origin:
- China
- Brand:
- Lemo Compatible Fgg.0b.302
- Unit Price:
- USD 5
- Price Terms:
- EXW Shenzhen
- Packing:
- PP BAG
- Payment Terms:
- T/T
- Payment Remarks:
- Paypal
- Delivery Time:
- 3-5 days
- Min Order Quantity:
- 2pcs
- Standard / Certificates:
- CE,ROHS
- Keywords:
- lemo connector, 0b 2pin waterproof ip50 plug
