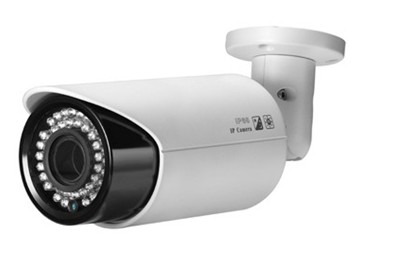

5MP Outdoor Waterproof IR IP Camera

5MP Outdoor Waterproof IR IP Camera, AL-IPR823
Item Code / Model Number:

5MP Outdoor Waterproof IR IP Camera 5MP Outdoor Waterproof IR IP Camera

* Fashional design IP Camera, H.264 Compression, Support ONVIF 2.2

* 5.0 Megapixel, 1080P HD resolution, High Performance Davinci DSP Solution

* Enclosed with free CMS Software to record/preview/playback

* Built-in 2.8~12mm Vari-focal 3 Megapixel Lens, 40M IR Night Vision Distance

* Mobile Monitor Support, Built-in 802.3af Compliant PoE Optional


IP Camera Type:5.0 Megapixel IP Camera

System: Embedded RTOS design, dicaryon 32 bit DSP(TI
Davinci DM368),Pure hardware compression,
watchdog, 32M FLASH,128M

Images Sensor: 1/2.5-inch 5 Megapixel Aptina 9P006 CMOS

Pixel: 1920(H)×1080(V)

Video Processing : H.264 video Code,support Dual-stream,
AVI; Support stream 0.1M-6Mpbs/ frame:
1~30fps djustable

Video output: Main Stream 1920×1080; Sub stream:

Resolution: 5MP: 2592x1920@10fps;
3MP: 2048x1536@15fps;
2MP: 1920x1080@25/30fps;
720P: 1280x720@25/30fps

Board Lens: 2.8~12mm Megapixel Lens(3 Megapixels)

Minimum Illumination: Color: 0.6Lux@F1.2,
B/W 0.08 Lux@F1.2(IR ON )

Infrared LED: 42 PCS; 40 Meters IR Night Vision distance

AGC/White Balance: AUTO

Day-night Switch: Support day-night switch (ICR)

Network: Ethernet (10/100 Base-T),RJ-45 connector, support

Function: Support WEB configuration, OSD, real-time video
support motion detect, message, download, video
type storage, screenshot picture storage,
Support CMS, remote management software

ONVIF: Support

Mobile Monitor: Support iPhone, Windows Mobile, Black
Berry, Symbian, Android

Power over Ethernet (POE): Optional

Power Supply : DC12V / 180mA/350mA (IR on)

Working Environment: -10 to +50 °C / 20~80%RH

Dimension : Φ76×231mm

Package includes: IP Camera x1,
CD-ROM x1 (setup program and user
  • Place of Origin:
  • China
  • Brand:
  • anslincctv
  • Unit Price:
  • USD 40
  • Price Terms:
  • FOB Shenzhen
  • Payment Terms:
  • T/T
  • Delivery Time:
  • 7 days
  • Min Order Quantity:
  • 1pcs
  • Keywords:
  • cctv camera, security products
