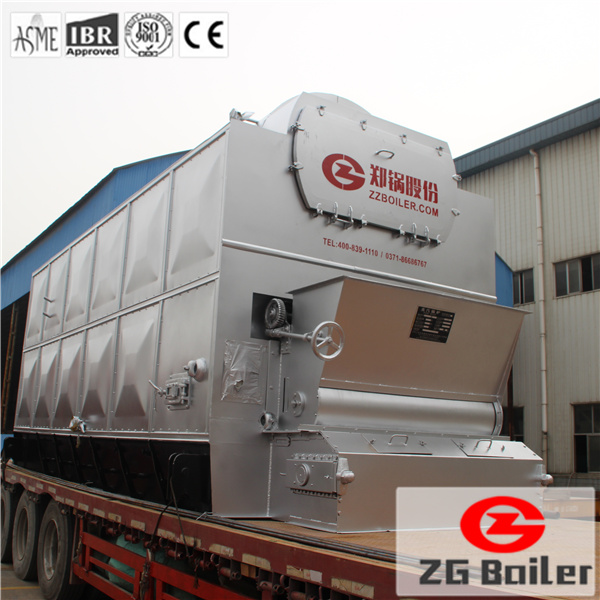

DZL packaged coal fired boiler

DZL packaged coal fired boiler
Item Code / Model Number:

DZL packaged coal fired boiler DZL packaged coal fired boiler
DZL Series Packaged Chain Grate Boiler could easily burn coal and shaped biomass fuel or mixture of coal and biomass fuel with its economizer in the rear that discharges the slag which could be used as fertile to agriculture. We provide 2 ton -10 ton packaged chain grate steam boiler to our clients, that is easy to install, transport and low cost.

Applications:
The packaged chain grate steam boiler can be used in textile, printing and dyeing, paper making, chemical industry, food processing, central heating and other industries.

Benefits:
wide range of coal types are available
Membrane water wall structure
Advanced and reasonable grate
design to ensure fully fuel combustion
Stable operation of new type grate bars, long service life
Simple operation, easy to maintenance
Few harmful gas discharge , energy conservation
Quick set up, low cost
Heat efficiency higher than industry standard
environmental protection

http://www.zgboilers.com/Products/dzl-packaged-chain-grate-steam-boiler.html
http://www.zgboilers.com/Products/industrial-coal-fired-boiler_1.html
Parameter:
Model Capacity(t/h) Pressure(MPa) Steam Temperature(℃) feed water Temperature(℃) Fuel Factory mode
DZL2-0.8-AⅡ 2 0.8 175 20 Ⅱbituminous coal Packaged
DZL2-1.0-WⅢ 2 1.0 184 Ⅲanthracite coal Packaged
DZL2-1.25-AⅡ 2 1.25 194 Ⅱbituminous coal Packaged
DZL4-1.25-AⅡ 4 1.25 194 Ⅱbituminous coal Packaged
DZL4-1.25-WⅢ 4 1.25 194 Ⅲanthracite coal Packaged
DZL4-1.6-AⅡ 4 1.6 204 Ⅱbituminous coal Packaged
DZL6-1.25-AⅡ 6 1.25 194 Ⅱbituminous coal Packaged
DZL6-1.6-AⅡ 6 1.6 204 Ⅱbituminous coal Packaged
DZL8-1.25-AⅡ 8 1.25 194 Ⅱbituminous coal Packaged
DZL8-1.6-AⅡ 8 1.6 204 Ⅱbituminous coal Packaged
DZL10-1.25-AⅡ 10 1.25 194 Ⅱbituminous coal Packaged
DZL10-1.6-AⅡ 10 1.6 204 Ⅱbituminous coal Packaged
  • Place of Origin:
  • China
  • Brand:
  • ZG
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 45 days
  • Min Order Quantity:
  • 1 SET
  • Standard / Certificates:
  • ASME, ISO
  • Keywords:
  • coal fired boiler, steam boiler, packaged coal boiler
