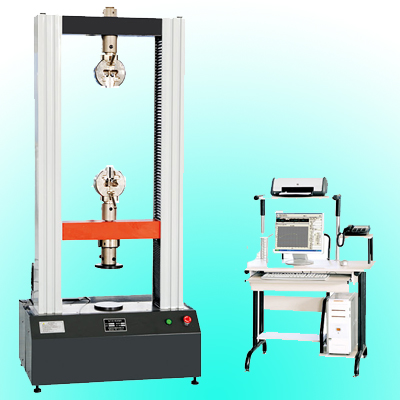

universal tensile testing machine 100KN computer control for metal,plastic,reinforced materials

universal tensile testing machine 100KN computer control for metal,plastic,reinforced materials
Item Code / Model Number:

universal tensile testing machine 100KN computer control for metal,plastic,reinforced materials universal tensile testing machine 100KN computer control for metal,plastic,reinforced materials
1.Model:WDW-100

2.Product name:computerized electrical universal testing machine

3. Applications of testing machine
This machine is applicable to metal, cementing compound, tubes, sectional bars, aerospace, petrochemical, waterproof rolls, wire and cable, textile, fiber, rubber, ceramics, food, mechanical packaging, geo-textile, film, wood, paper and other industries and quality supervision department, and it also can be used in college for teaching demonstration.

4. Features of testing machine
1) Adopting aluminum alloy cover, with attractive streamline structure

2) Mainly used to test mechanical properties for metal, non-metal and composite materials

3) Adopting precision auto control and data acquisition system to realize fully digital adjustment to data acquisition and control process. During test, it can test max. Bearing tensile force, compression force, tensile strength, deformation, elongation, yield point and other technical specifications

4) After test, the above parameters can be calculated automatically through main controller according to the test parameters, which are set before test and meantime display the corresponding test results. All test parameters can be saved and inquired after test, also can be printed out.

5) With remote control box to realize speed adjustment of crossbeam, flexibly and freely switched

6) With functions of automatic return to original position, intelligently, efficiently, quickly

7) With limit position function of any working position and over voltage, over current protection functions, reliable and safe

8) With many control modes of constant speed control to force, stress, deformation, strain and low cycle and user self-programming control

9) Switch among many test curves: stress-strain curve, load-deformation curve, load-displacement curve, load-time curve, deformation-time curve, displacement-time curve. Partial enlargement, overlap and comparison.

5.Spec. of testing machine
No. Item Spec.
1 Max. Load 100KN
2 Resolution of test force 1/±300000
3 Resolution of displacement 0.001mm
4 Precision of crossbeam displacement ±0.5%
5 Precision of deformation ±0.5%
6 Measuring range of test force 1%-100%FS
7 Relative error of test force ±1%
8 Relative error at zero point ±0.5%
9 Speed of crossbeam 0.01-500mm/min
10 Precision of crossbeam speed ±1%
11 Speed range of load 0.005%-5%FS/s
12 Precision of load speed When speed is less than 0.05FS/s, precision is within ±1% of set value, when speed is more than 0.05FS/S, precision is within ±0.5% of set value
13 Speed of deformation 0.005%-5%FS/s
14 Precision of deformation speed When speed is less than 0.05FS/s, precision is within ±1% of set value, when speed is more than 0.05FS/S, precision is within ±0.5% of set value
15 Stroke of crossbeam 800mm
16 Effective tensile height 650mm
17 Effective test span 500mm
18 Effective compression height 700mm
19 Clamps for round specimen Ø4-9mm; Ø 9-14 mm
20 Clamps for flat specimen 0-7mm, 7-14mm
21 Diameter of compression platen 150mm
22 Voltage and power 220V±10%, 50Hz, 1.5KW
23 Dimension of main machine 850X555X1900mm
24 Weight of main machine about 650kg
  • Place of Origin:
  • china
  • Brand:
  • bangke
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 5 working days days
  • Min Order Quantity:
  • 1 set
  • Standard / Certificates:
  • CE
  • Keywords:
  • tensile testing machine, universal testing machine, 100kn testing machine
