4 port long range uhf rfid reader module

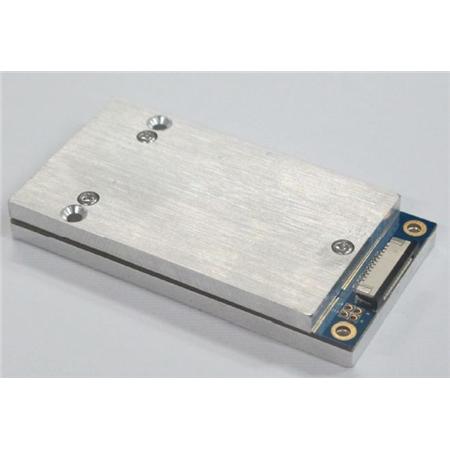

4 port long range uhf rfid reader module, HYM-750Item Code / Model Number:
HYM-750
Brief introduction
HYM750 UHF RFID reader uses R2000 chip, which complies with EPC C1G2
protocol, its working frequency is 840~960MHz,with LBT function. It supports dense
reader working mode(DRM).With standard 12dBi antenna,the reading distance can
reach 24 meters, maximum identifying speed can reach 400/S; with simple power
supply and interface circuit, a high-performance RFID system can be established. It is
suitable for logistics, apparel, medical industry, and complex assets management, etc
Technical Data
No
Item
Technical data
Unit
Remark
1
Fixed current
1.2
A
Max power output
2
Standby current
≤1
mA
EN pin low level
3
Frequency range
840~960
MHz
4
Default working
frequency
Frequency hopping
MHz
Frequency interval 250KHz
5
Channel bandwidth
≤250
KHz
6
Frequency hopping
speed
≤2
s
7
Fixed power
30
dBm
8
Stepping interval
1~2
dB
5~30dBm, adjustable by
software
9
Label protocol
EPC C1G2
/ISO18000-6C
10
Communication
protocol
Asynchronous serial
ports protocol
11
Starting time
≤50
ms
12
Radio-frequency
power rising time
≤500
μs
13
Radio-frequency
power dropping time
≤500
μs
14
Adjacent channel
power leaking ratio
≤-40
dB
±1CH
≤-60
dB
±2CH
15
Frequency
stabilizing ratio
±10
ppm
-25℃~+40℃
±20
ppm
-40℃~+60℃
16
Max reading range
24
m
12dBi antenna
17
Multi-tags
>400/s
PCB LAYOUT
Drawing3 Pin connector
interface 1.jpginterface 2.jpg
Packaging & Shipping
professional delivery .jpgwhy chose us.jpg
Our certificates
1. Any inquries can be replied within 24hours
2. Professional manufacturer.
3. OEM/ODM available:
we provide the ideal design program as customized;also can provide excellent OEM service to customers. 4. High quality, fashion design. Reasonable &competitive price. Fast lead time.
5. After-sale service:
All products will have been strictly quality checked in house before packing
All products will be well packed before shipping.
All our products have 1 year warranty. And we sure the product will be free from maintenance within warranty period.
FAQ
How to order?
1) Provide your specific requirements and artwork with format of PDF;
2) Quotation; Alien Passive Rfid Tag
3) Confirm to place the order for target product;
4) Our designer will make the bleed on your artwork or do a design according to your requirements;
5) Send you the confirmation draft and a Proforma Invoice;
6) Signed the confirmation draft and send it back, then make payment;
7) Start production after confirmation and payment;
HYM750 UHF RFID reader uses R2000 chip, which complies with EPC C1G2
protocol, its working frequency is 840~960MHz,with LBT function. It supports dense
reader working mode(DRM).With standard 12dBi antenna,the reading distance can
reach 24 meters, maximum identifying speed can reach 400/S; with simple power
supply and interface circuit, a high-performance RFID system can be established. It is
suitable for logistics, apparel, medical industry, and complex assets management, etc
Technical Data
No
Item
Technical data
Unit
Remark
1
Fixed current
1.2
A
Max power output
2
Standby current
≤1
mA
EN pin low level
3
Frequency range
840~960
MHz
4
Default working
frequency
Frequency hopping
MHz
Frequency interval 250KHz
5
Channel bandwidth
≤250
KHz
6
Frequency hopping
speed
≤2
s
7
Fixed power
30
dBm
8
Stepping interval
1~2
dB
5~30dBm, adjustable by
software
9
Label protocol
EPC C1G2
/ISO18000-6C
10
Communication
protocol
Asynchronous serial
ports protocol
11
Starting time
≤50
ms
12
Radio-frequency
power rising time
≤500
μs
13
Radio-frequency
power dropping time
≤500
μs
14
Adjacent channel
power leaking ratio
≤-40
dB
±1CH
≤-60
dB
±2CH
15
Frequency
stabilizing ratio
±10
ppm
-25℃~+40℃
±20
ppm
-40℃~+60℃
16
Max reading range
24
m
12dBi antenna
17
Multi-tags
>400/s
PCB LAYOUT
Drawing3 Pin connector
interface 1.jpginterface 2.jpg
Packaging & Shipping
professional delivery .jpgwhy chose us.jpg
Our certificates
1. Any inquries can be replied within 24hours
2. Professional manufacturer.
3. OEM/ODM available:
we provide the ideal design program as customized;also can provide excellent OEM service to customers. 4. High quality, fashion design. Reasonable &competitive price. Fast lead time.
5. After-sale service:
All products will have been strictly quality checked in house before packing
All products will be well packed before shipping.
All our products have 1 year warranty. And we sure the product will be free from maintenance within warranty period.
FAQ
How to order?
1) Provide your specific requirements and artwork with format of PDF;
2) Quotation; Alien Passive Rfid Tag
3) Confirm to place the order for target product;
4) Our designer will make the bleed on your artwork or do a design according to your requirements;
5) Send you the confirmation draft and a Proforma Invoice;
6) Signed the confirmation draft and send it back, then make payment;
7) Start production after confirmation and payment;
