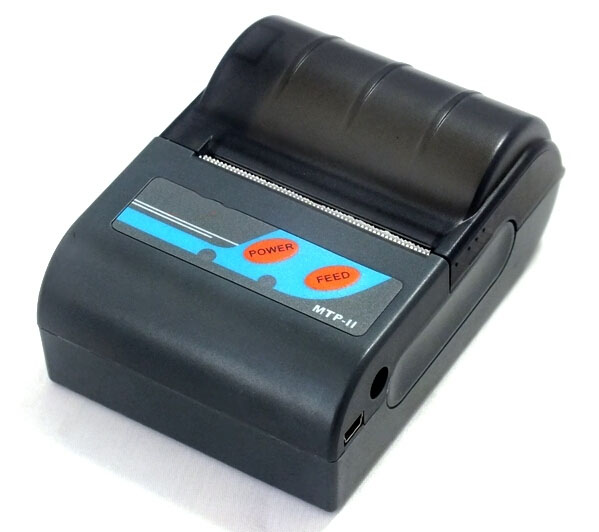

Thermal Mini Mobile Bluetooth Printer Portable Label Receipt Printer Support Android & IOS

The smallest 2" Mobile printer
Lightest weight (205g) for true mobility
High speed (80mm/sec) thermal method printing
Long lasting battery duration (7. 4V 1500mAh Li ion rechargeable battery)
1. 2 meter Free fall onto concrete
Variable interfaces (RS232 USB) for option
Support text and graphic printing
Easier paper loading by CLAMSHELL design
In field programming Update Firmware Download Fonts and Logos
Windows driver for Windows XP/2000/VISTA/7
Demo SDK for Windows Mobile WINCE Symbian Android


Specifications

Item MPT-II
Printing Method Thermal line
Printing Speed 50~80mm/s
Effective Printing Width 48mm
Resolution 8 dots/mm, 384 dots/line
Print Font ANK: 8x16, 12 x24 GBK:16x16, 24 x 24
Character per Line 32
Paper Type Thermal paper
Paper Width 57.5± 0.5mm
Paper Roll Diameter Max: 40.0mm
Roll Core Inner Diameter 13mm(min.)
Paper Thickness 0.06 to 0.07mm
Paper Loading Method Drop-in easy loading
TPH Reliability 50km
Barcode
1-D:UPC-A, UPC-E, EAN-13, EAN-8, CODE39,ITF25, CODABAR, CODE93, CODE128; 2D:PDF417, QR code, DATA Matrix
Emulation ESC/POS
Sensor Paper end sensor, Power near end sensor, Cover open sensor
Interface RS-232C, USB, IrDA, Bluetooth
Power Adaptor DC12V/500mAh
Battery DC7.4V,1.5A rechargeable Li-ion battery
Battery Duration
150~200m continuous printing(12.5%density);1200 receipts(150mm each receipt);80~100m continuous printing(25%density)
Operating Temp -10~50°C
Storage Temp -20~70°C
Operating Humidity 20~85%
Storage Humidity 5~95%


Application

meter reading industry
The insurance industry
warehousing industry
parking fee charge
logistics industry
mobile sales
Mobile Police Affair Systems
