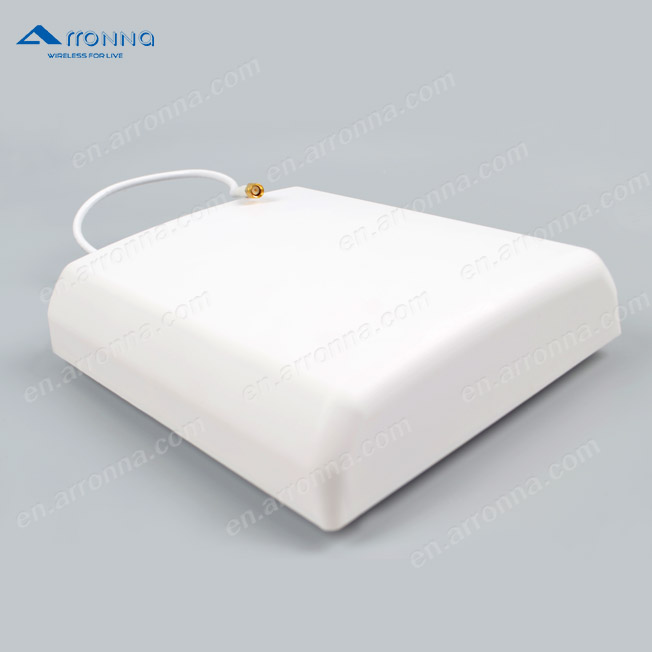

Sell 4G LTE panel antenna 10dbi outdoor/indoor wireless directional patch antenna
Sell 4G LTE panel antenna 10dbi outdoor/indoor wireless directional patch antennaContinuous Selling Item
Sell 4G LTE panel antenna 10dbi outdoor/indoor wireless directional patch antenna
Electric Specification
Model NO
P810124
Frequency Range-MHz 806-960/1710-2500
Bandwidth-MHz 154/790
Gain-dBi 7/10
Horizontal Beam width-° 70/60
Vertical Beam width -° 55/45
F/B Ratio-dB ≥10/≥13
VSWR ≤1.5
Input Impedance -Ω 50
Polarization Vertical
Maximum Power -W 50
Connector N female
Mechanical Specification
Dimension-mm 210x180x44
Weight 0.7
Model NO
P810124
Frequency Range-MHz 806-960/1710-2500
Bandwidth-MHz 154/790
Gain-dBi 7/10
Horizontal Beam width-° 70/60
Vertical Beam width -° 55/45
F/B Ratio-dB ≥10/≥13
VSWR ≤1.5
Input Impedance -Ω 50
Polarization Vertical
Maximum Power -W 50
Connector N female
Mechanical Specification
Dimension-mm 210x180x44
Weight 0.7
- Place of Origin:
- China
- Brand:
- Arronna
- Unit Price:
- USD 7
- Port:
- FOB Shenzhen
- Packing:
- 3-15 days for the MOQ after we check your payment . We provide neutral package and many other customised package by yourself .
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- paypal,western union
- Delivery Time:
- 3-15
- Min Order Quantity:
- 100pcs
