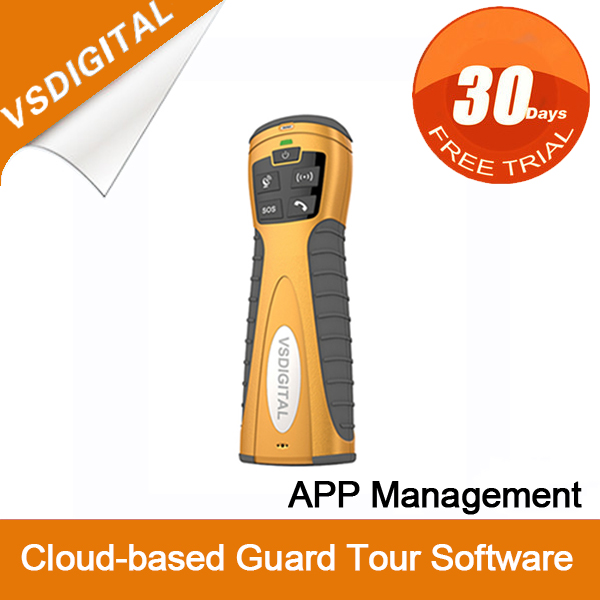

GPS Guard Tour System with Mandown and Panic Call

Main Function:

1.POWER Button
2.Read tag Button
3.PANIC Call Button
4.CALLME Button
5.GPS Button
RFID Button:
Real time system:Press the RFID key,then read the tag,
the record will be sent to the server instantly.

Panic Call Button:
Urgent alert:When the guard meet emergency or be threatened in the patrol, pressing the
Panic key, the SOS signal will be send to the monitor center via the GPRS or SMS for help.
(This message can also be sent to the related admins' smart phone via our APP )


Call Me Button:
1) Short press, V9 will send the signal to the monitor center via GPRS or SMS,reminding the
admin to call back. For example,when you meet something in your patrol which needs to
ask for dealing method.
2) Long press,V9 will call a number which was set before.

GPS Button:
GPS Location:Pressing GPS button can send the location information of the user to the
server, the location will show in the google or baidu map.

MANDOWN (falling) detection: when the user falls and can not move by accident, such
as field staff fall alone or be attacked to lay on the ground motionless, V9 can detect this
situation and send the signal and GPS location information to the monitor center automatically
via GPRS or SMS for help.

Remote update:
1.48groups alarm can be updated remotely
2.Firmware can be updated remotely
3.Parameter can be updated remotely via GPRS or SMS. If you choose SMS,you need to
appoint a authorized smart phone number, only the specified number can update the
parameter via SMS remotely.

Impact detection:
When V9 reader is damaged on purpose, it will send the information to the server.

Low power reminder:Remind charging in time.
Open back cover record:Avoid opening the device by the anti-authorized person
Timezone function:V9 can be updated automatically according to the DST.





Technical Data

Probe
RFID

Read Frequency
125khz

Read distance
3-5cm

Data transfer
GPRS,SMS,RS232

GPS
A-GPS,850pcs storage

Man down Protection
YES

Voice communication
YES

Storage capacity
6000pcs

Rechargeable battery
1800mAH

Protection level
IP67

Indication way
Beep,Flash,Vibration

Size
150mm*50mm*30mm

Weight
200g
