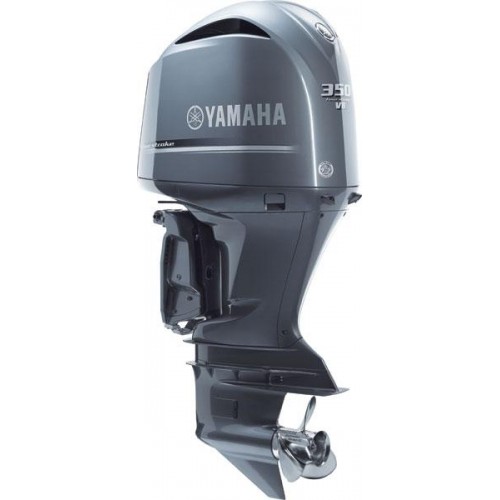

Yamaha Lf350ucb Four Stroke V8 5.3l F350 Outboard Motor

Model: 350 HP Four Stroke V8 5.3L F350
Model Number: LF350UCB
Series: Four Stroke V8 5.3L F350
HP: 350
_Engine Type: V8 (60°)
Displacement: 325.3ci (5330 cc)
Bore x Stroke: 94 x 96mm (3.70 x 3.78 in.)
Prop Shaft Horsepower: 350 @ 5500 rpm's
Cylinder Heads: DOHC / 32 valve with Variable Camshaft Timing (VCT)
Compression Ratio: 9.6
RPM Range: 5000-6000
Fuel/Induction System: Sequential multi-point electronic fuel injection
Fuel Type: Unleaded gasoline (minimum pump octane 89)
Exhaust: In-Bank™ dual exhaust with Power Surge Chambers
Intake: Single electronic throttle valve with 8 individual long intake tracks
Ignition System: TCI, 32-bit ECM with integrated coil-in-cap ignition design
Spark Plug: NGK LFR6A-11
Alternator Output @ W.O.T: 50A (40A @ 1000rpm)
Starting System: Electric
Lubrication: Wet sump
Oil Capacity: 8.2 quarts
Recommended Engine Oil: Yamalube 4-M FC-W 10W-30 or 20W-40
Gear Ratio: 1.73
Shaft Length: 30 in
Controls: Command Link Digital Electronic Controls
Multiple Outboard Synchronization: Auto sync throttle control with twin and triple applications
Trolling Throttle Adjustment: +/- 50 rpm increments (600 - 1000 rpm range) via Command Link System
Mounting Centers: 28.5 in (same as F250)
Mounting Bolt Pattern: 6 bolts (same as F250 plus two additional upper bolts)
Steering Angle (maximum): 32° from center, either direction
Weight: 822 lb
C.A.R.B. Rating: 3-Star
Warranty: 3-Year Pleasure, 3-Year Government, 1-Year Commercial
Command Link Guages or Command Link Plus Displays: Required
Command Link or Command Link Plus Digital Controls: Required
Engine Sensing Warning System: Standard
Engine Stop Switch Lanyard: Standard
3 Year Limited Warranty: Standard
Enhanced Ultimate Corrosion Protection System (UCP-ll): Standard
Electronic Fuel Injection: Standard
External Tilt Switch: Standard
High Output Alternator: Standard
Micro-Computer Ignition System: Standard
Multi-Charge Monitoring System: Standard
Power Trim and Tilt: Yes
Sure-Seal Tri Latch: Standard
Thermostatic Cooling System: Standard
Saltwater Series XL, XL4, or XL4-HP Prop: Required
Remote Steering: Standard
Freshwater Flush: Standard
Rotation: Left (Counter)
