Chain Block, Lever Block, Electric Hoist

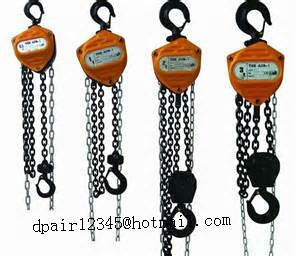

The chain block characteristic:
1.safe in use and easy to maintain.
2.High mechanical efficiency,small hand chain pull force
3.Light in weight and portable
4.Beautiful appearance and small in size
5.Durable
Aluminum alloy lever block characteristics
1.high strength,high plasticity aluminum alloy box not only greatly improves the strength but also keeps the light weight.
2.Two velocity and the short handle make the operation labor saving.
3.360 rotating handle provide various operation mode in limited space.
4.Sprocket wheel which can rollover freely in neutral position,makes sur the chain to move fast and easily.
5.Fully enclosed,automatic control system makes the brake clean and dry,at the same time,guarantee the work safe and reliable.
HSZ-VT Technical parameters
Model HSZ-VT0.5 HSZ-VT1 HSZ-VT1.5 HSZ-VT2 HSZ-VT3 HSZ-VT5 HSZ-VT10
Capacity(t) 0.5 1 1.5 2 3 5 10
Standard lift(m) 2.5 2.5 2.5 3 3 3 3.5
Running test load(t) 0.75 1.5 2.25 3 4.5 7.5 15
Min distance between hooks/mm 285 315 340 380 475 600 700
Chain pull force in full loading/kg 25 33 34 34 35 39 41
No.of colums of load chain 1 1 1 1 2 2 4
Load chain dia(mm) 6.3 6.3 7.1 8 7.1 9 9
Net wight(kg) 8.4 11 13.5 21 22 40 77
Gross weight(kg) 9.4 12 14.5 22 23 41.5 85
Packing size
(L*W*H)(cm) 30*17*32 30*17*32 30*17*32 30*17*32 30*17*32 40*20*42 62*50*26
