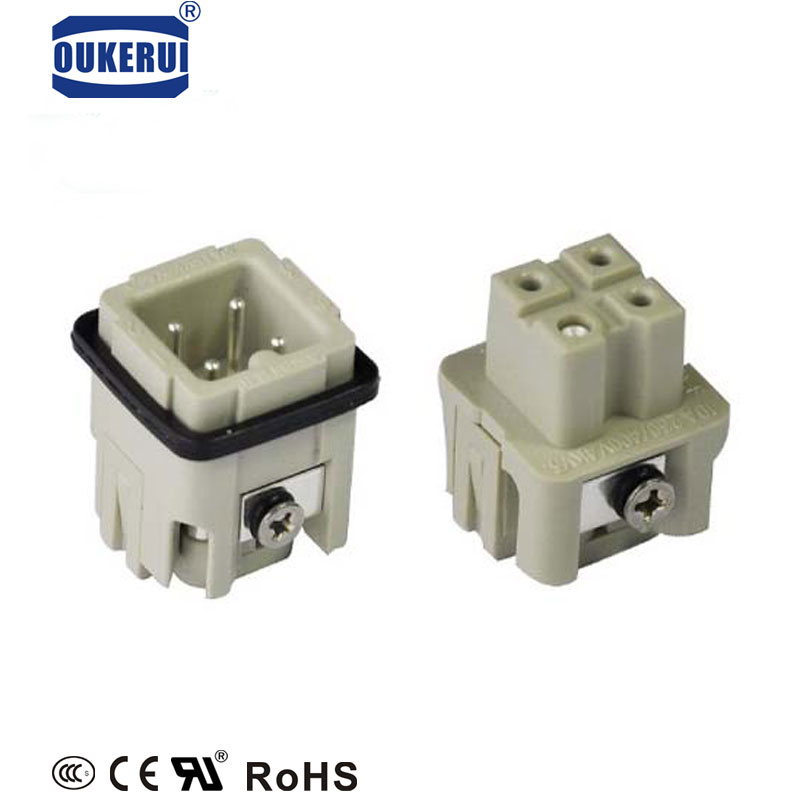

Sell Oukerui Heavy Duty Connector Hzw-ha-003-m/f
Sell Oukerui Heavy Duty Connector Hzw-ha-003-m/fContinuous Selling Item
Sell Oukerui Heavy Duty Connector Hzw-ha-003-m/f
Specifications
Number of contacts 3+PE
Working current 10A
Working voltage 230/400V
Rated impulse voltage 4KV
Pollution degree 3
Insulation resistance ≥1010Ω
Material PolyCarbonate
Flammability acc.to (UL94) V0
Limiting temperatures -40℃...+125℃
Mechanical working life (mating cycles) ≥500
Working voltage acc.to UL/CSA 600V
Contacts
Material Copper alloy
Surface silver- plated
Contact resistance ≤1mΩ
Terminal Screw terminal
Wire gauge 1.0-2.5mm²(AWG18-14)
Screw terminal tightening 0.25Nm
web:www.oukerui.com
Number of contacts 3+PE
Working current 10A
Working voltage 230/400V
Rated impulse voltage 4KV
Pollution degree 3
Insulation resistance ≥1010Ω
Material PolyCarbonate
Flammability acc.to (UL94) V0
Limiting temperatures -40℃...+125℃
Mechanical working life (mating cycles) ≥500
Working voltage acc.to UL/CSA 600V
Contacts
Material Copper alloy
Surface silver- plated
Contact resistance ≤1mΩ
Terminal Screw terminal
Wire gauge 1.0-2.5mm²(AWG18-14)
Screw terminal tightening 0.25Nm
web:www.oukerui.com
- Place of Origin:
- Cixi
- Brand:
- Oukerui
- Unit Price:
- RMB 26
- Port:
- FOB Ningbo
- Payment Terms:
- L/C;D/A;T/T;D/D;Cash
- Delivery Time:
- 30
- Min Order Quantity:
- 1pcs
