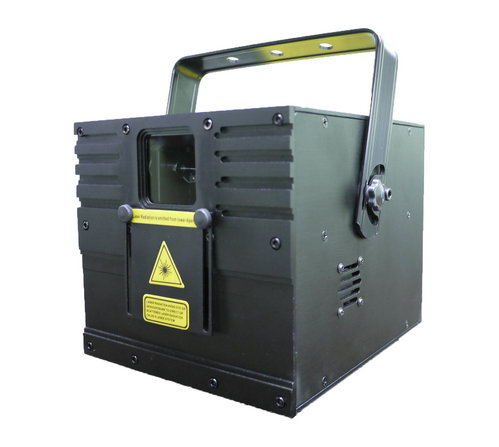

1w Rgb Laser Light

Type:
MinCube
Guaranteed optical output:
1000mW
Suitable for:
indoor events
System control:
ILDA,DMX,PC,SD card
Safety:
Sentry Key Remote Entry System.
weight:
7KG
Size:
22*25*21CM
Module(s):
R: 200mW/637nm, G: 300mw/532nm B: 500W/445nm
Beam diameter:
7mm
Beam divergence(half angle):
<0.8mrad
Modulation:
0-5V analog, up to 100kHz
Control signal input:
ILDA-IN DB25 male
Control signal output:
ILDA-OUT DB25 female
Rotating Angle
Pan movement range 540
XY fine
X = 2.11°, X fine= 0.008°
Power requirements:
100-230V/50Hz (±5%)
Consumption:
max. 220VA/240V, 440VA/110V
Operation temperature:
10-35°C
Ingress protection rating:
IP54, higher on request
Special features:
Adjustable control: power output, XY axis invert, scan-fail safety mode(input/Scanner)
Integrated laser safety features:
Scan-fail circuit and electronic shutter with reaction time of less than 20ms.
