Xingyang Yuli Furnace Co., Ltd

Sell box type muffle furnace

Sell box type muffle furnace
Continuous Selling Item

Sell box type muffle furnace Sell box type muffle furnace

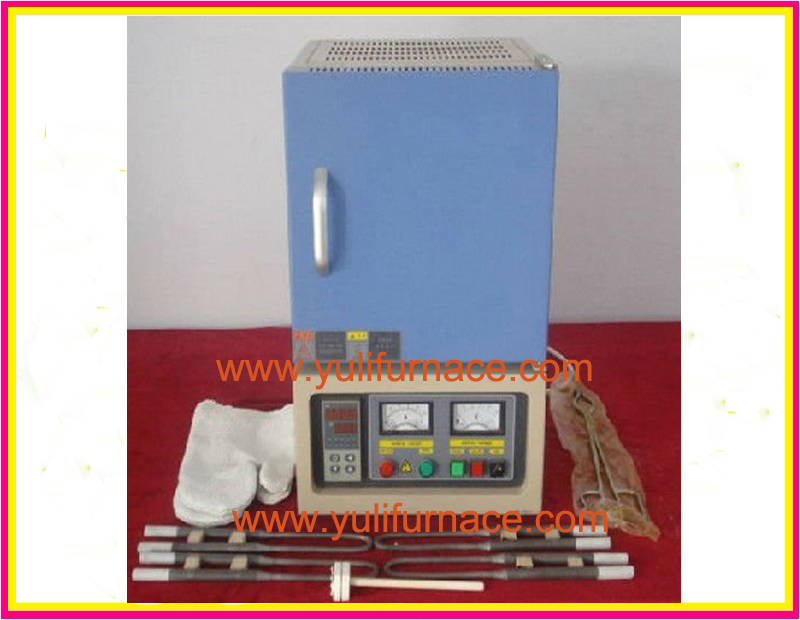

YL-1700M Muffle Furnaces are high temperature muffle furnaces. The furnace consists of high quality alumina fiber insulation and 1800 grade MoSi2heating elements, and is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller Specifications
Structure
1) High quality 1800ºC alumina fiber inner insulator and double layer steel outer layer with air cooling fan to keep case exteriors safe to touch.
2) Design of side door is for loading sample at easy.
3) 1800°C grade MoSi2 heating elements with replacement at easy.
Chamber Dimensions
Width×Height×Depth --(100—600)×(100—600)×(100—600)mm,
Working temperature
100℃--1600℃(continuous)
1700℃(less than 3 hours)
Power
0.5—30KW
Voltage
110 -440V Single or three Phase 50/60 Hz
Thermal couples
B type
Stability at 1000 °C
+/- 0.5 °C
Uniformity at 1000 °C
+/- 2.0 °C
Max. Heating Rate
50°C/ min
Temperature Control
1) {C}PID automatic control and auto-tune function.
2) {C}30 programmable segments for precise control.
3) {C}Built-in over temperature alarm and protection allows for operation without attendant.
4) {C}+/- 1 ºC temperature accuracy.
  • Place of Origin:
  • China
  • Brand:
  • YL
  • Unit Price:
  • USD 1200
  • Port:
  • FOB 1300
  • Packing:
  • wooden case
  • Payment Terms:
  • L/C;D/A;T/T;M/T;D/D;D/P
  • Delivery Time:
  • 5days
  • Min Order Quantity:
  • 1set
  • Standard / Certificates:
  • CE, ISO
