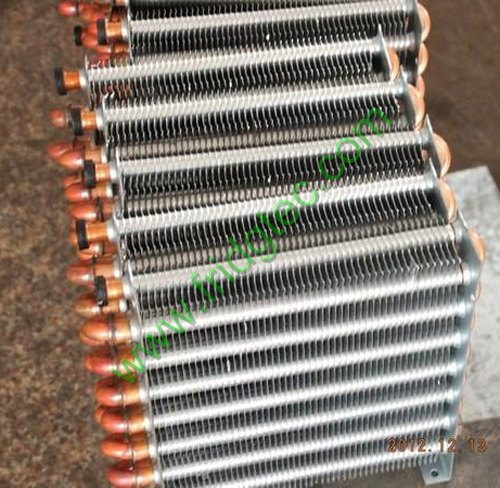

High Efficiency Copper Tube Aluminum Fin Refrigeration Evaporator

High efficiency copper tube aluminum fin refrigeration evaporator

Direct Expansion Evaporator coils are engineered and designed to deliver maximum heat transfer efficiency under a wide range of operating conditions. We can offer a wide variety of circuiting coils, including interlaced Row/Face split, to meet the performance requirements of various applications. Evaporator coils are counter flow circuited and have optimized size suction headers and refrigerant distributors. The distributor tubes are of equal lengths to ensure equal distribution of refrigerant into each circuit.

Factory introduction
Our factory located in Hangzhou, China,10 minutes car distance to our office.
Our factory is ISO 9001 certified, professional in production of copper tubefin evaporator and condenser.
We use high quality material, equipped by high automation machinery like finpunching machine, auto tube flaring machine, automatic welding machine, we haveover 15 years experience in production and with professional technicians tocontrol mold production, IQC, IPQC, FQC and OQC, all products comply with Japan& Italy standard, all these make us achieve good sales increasing year byyear and awarded nice quality reputation among all customers.

Typical benefits and character
Well distributed liquid dispensing of windward area ofcondenser coil
High quality mechanical expanding or super high pressinghydraulic expanding between copper tube and fins, tight contacting andoptimized heat exchanging.
Free pitch distance selection, reduce the frost affection inlow temperature.
With single or double reverse-flow system, small waterresistance, good heat exchanging
With super high temperature vacuum drying, ensure innerwithout impurity or water substance.

Main application & usage
Productsare suitable for R134A, R22, R404A, R407C, and CO2 refrigerant.
Widely used for commercial refrigerators and freezers, commercial showcase cabinet,air-conditioning systems, dehumidifier, ice maker etc.

Material
Material: copper tube, aluminum fins, galvanized steel bracket ifneed
- Copper tube: made by Hailiang China,Φ5,Φ7mm,Φ7.94,Φ9.52, Φ12.7, Φ15.88, inner thread groove or smooth tube
- Aluminum foil: blue or other color hydrophilic, or uncoated bare
- Fin type: louver, flat, corrugated or slit fin
- Side plate: galvanized steel plate, stainless steel, aluminum or brass.


Production process
Tube bending, punching fin, tube expanding, fins installation, drying, welding,leakage test, tube bending, quality inspection, packing

FQC & OQC
Tightness testing: gas testing under 3.0Mpaair pressure
Leakage testing: water leakagetesting
