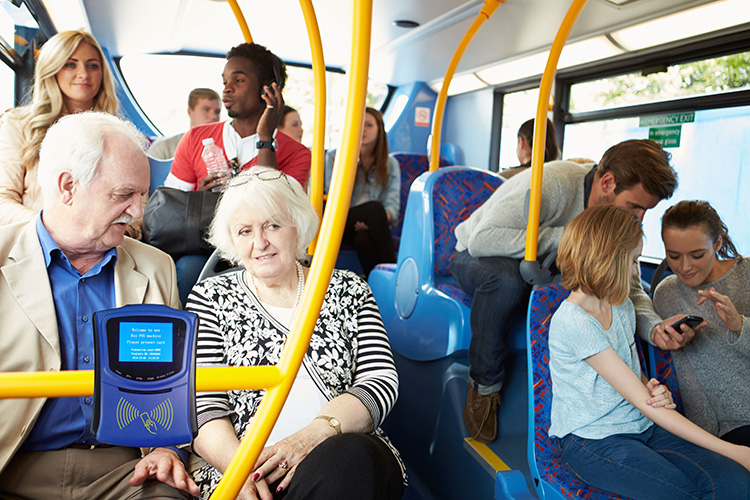

Onboard Bus Ticket Validator With GPRS And NFC Reader

Applications: bus, taxi, metro, highway, supermarkets, gas station, kiosk, store, theater and so on fast payments fields
Government, institution, company, factory, school, hospital, hotel
Urban public transportation ticket payment system, company shuttle bus ticket payment system, school shuttle bus payment system
Features: made of industrial grade material, fully adapt to special circumstances on bus
Sealed, dust-proof, waterproof, shockproof and anti-electromagnetic interference
Dedicated stable power supply, voltage overload protection
With the most advanced Linux system, high-definition LCD display
Wi-Fi communication + USB data acquisition, support remote upgrading
Contactless smart card, read/write capability, light display for reading card
Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
Supports MIFARE® 1 card, CPU card, supports PBOC3.0 bank standards
With Thermal printing module, can connect to POS58 slip printer
Optional GPS positioning module, for global positioning satellite positioning
Great stability of data storage, data kept as long as 10 years even with power outage
Card capacity: 91,880,000pcs
Can check the nearest 20 records, to prevent ticket payment dispute
Technical specifications:
Model: handheld POS machine Linux system for urban bus transportation management
Dimensions: 200*151*61.5mm
Material: engineering plastics, anti-static electricity coating design, be protected from high-frequency interference
Display: 3.5-inch LCD display, 320x240
Operating system: Linux 2.6 system
CPU: N32905 processor, ARM9 core @ 240MHz
Memory: 32MBytes SDRAM, 128MB NAND flash
Data capacity: 259840pcs of detailed data for console storage, unlimited data at GPRS storage
Card capacity: 91,880,000pcs
Working voltage: DC 8-50V
Operating temperatures: -25-65°C
Storage temperatures: -40-85°C
Humidity range: 0-90% RH non condensing
Pilot lamp: red, green light
Sound prompt: buzzer, single channel speaker (voice report)
RFID: can read and write ISO 1443 type A/B electronic tag (incl. combi-card)
Supporting card: MIFARE® 1 card, CPU card, UnionPay IC card
Frequency: 13.56MHz
Interfaces/connectors: RS232, USB
Printer modules: can be connected to slip printer-POS58
Positioning mode: GPS
Communication modules: GPRS (900MHz/1800MHz), or CDMA (800MHz)
Wi-Fi: supporting 802.11n/b/g standards, 150Mbps, 2.4Ghz
UnionPay: compatible for PBOC3.0 UnionPay card
MIFARE and MIFARE Classic are trademarks of NXP B.V.
