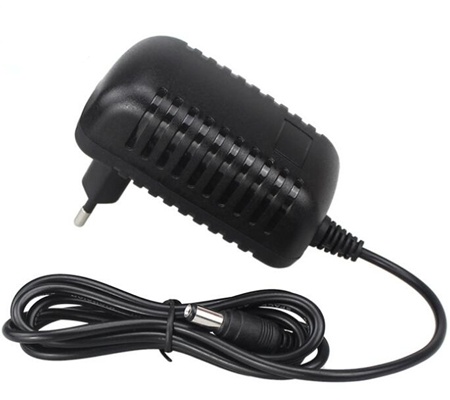

16V/1A AC/DC Power Adapter, EU Standard
16V/1A AC/DC Power Adapter, EU Standard, XH-WA001Item Code / Model Number:
XH-WA001
16V/1A AC/DC Power Adapter, EU Standard
Applications:
Fixed frequency control circuit, apply to communication products, digital products, energy conservation and environment-friendly products, massage equipment, fitness equipment, medical equipment and other household electrical appliances
Product characteristics:
Safety approval of CC, CB, ETL, CE, GS, BS, KC, SAA, PSE
Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
Accept customization of specification, USB output type or power cord output type
Customization: U, American, British, Australia, Korean, Chinese standards
Electrical characteristics:
Input voltage: 100-240V/AC (90-264V/AC)
Input current: 0.5A max
Frequency: 50/60Hz (47-63Hz)
Output voltage: 3.0-30V
Output current: 0.1-2.0A
No-load power consumption: 0.1W max
Efficiency: 70% min
Ripple and noises: 50-180mV
Line regulation: ±1%
Load regulation: ±5%
Output protections:
Short circuit protection
Over-voltage protection
Over-current protection
Environmental characteristics:
Hi-pot test: 3750V/AC, 60s, 5mA max
Insulation resistance: 100mΩ min
Leakage current: 0.25mA max
Operating temperature: 0 to 40°C
Storage humidity: 5 to 95% RH
Burn-in test: rate load, 40 ±5°C, 4 hours
EMC standards: EN55022 class-B/FCC part 15 class-B
EN55024/A1:2001/EN61000
Fixed frequency control circuit, apply to communication products, digital products, energy conservation and environment-friendly products, massage equipment, fitness equipment, medical equipment and other household electrical appliances
Product characteristics:
Safety approval of CC, CB, ETL, CE, GS, BS, KC, SAA, PSE
Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
Accept customization of specification, USB output type or power cord output type
Customization: U, American, British, Australia, Korean, Chinese standards
Electrical characteristics:
Input voltage: 100-240V/AC (90-264V/AC)
Input current: 0.5A max
Frequency: 50/60Hz (47-63Hz)
Output voltage: 3.0-30V
Output current: 0.1-2.0A
No-load power consumption: 0.1W max
Efficiency: 70% min
Ripple and noises: 50-180mV
Line regulation: ±1%
Load regulation: ±5%
Output protections:
Short circuit protection
Over-voltage protection
Over-current protection
Environmental characteristics:
Hi-pot test: 3750V/AC, 60s, 5mA max
Insulation resistance: 100mΩ min
Leakage current: 0.25mA max
Operating temperature: 0 to 40°C
Storage humidity: 5 to 95% RH
Burn-in test: rate load, 40 ±5°C, 4 hours
EMC standards: EN55022 class-B/FCC part 15 class-B
EN55024/A1:2001/EN61000
- Place of Origin:
- China
- Brand:
- XH
- Unit Price:
- USD 1.95
- Price Terms:
- FOB Xiamen
- Packing:
- PE bag+white box
- Payment Terms:
- T/T
- Delivery Time:
- 21 days
- Min Order Quantity:
- 500
- Standard / Certificates:
- SAAãRCMãBSãCBãCEãCCCãREACHãRoHSãPAHS
