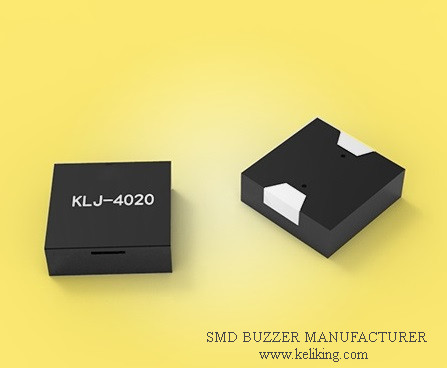

Ultra Small SMD Electromagnetic Buzzer, 3V/110mA/73dB, KLJ-4020

Technical Parameters KLJ-4020 SMD Magnetic Buzzer
Oscillation Frequency(Hz) 4000
Operating Voltage(Vp-p) 2.0-4.0
Rated Voltage(Vp-p) 3.0
Current Consumption(mA/max) 110 at Rated Voltage
Sound Pressure Level(dB/min) 73 at 10cm at Rated Voltage
Coil Resistance(Ω) 12±2
Operating Temperature(℃） -20~ +85
Storage Temperature(℃） -30 ~ +85
Environment Compulsory Standard ROHS
PS: Vp-p=1/2duty, square wave

Audible distance at rated vol. 0.5-1m
Application: Mini type smart electronic devices, such as wearable smart devices, artificial intelligence devices and more.



Description of SMD magnetic buzzer:


1. LCP is applied as housing material with properties including heat resistance and acid-alkali resistance

2. Well-chosen yellow grass is applied as lead pin material in order to provide best welding property to the product.

3. Tiny size of the product adapts to more multiple PCB space design.It meets the trend of making electronic products ultimately small and thin.

4. Mature SMD design perfectly meets the SMT requirements which greatly improved welding efficiency.

5. Steadily effective distance of sound output is very suitable for a wide range of portable electronic devices

6. Rated square wave output and rated voltage are needed

7. ROHS Directive-compliant
