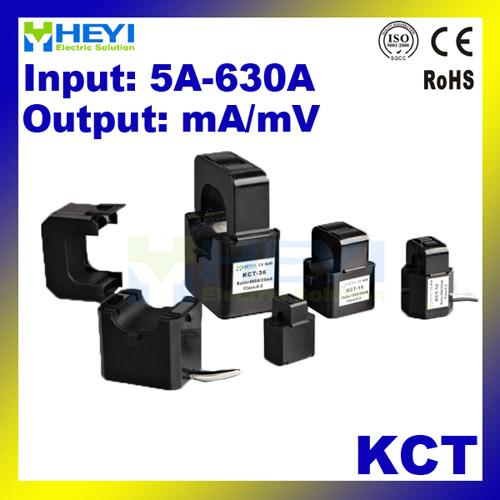

HEYI split core current transformer KCT micro clamp on ac current sensor 5-600a
HEYI split core current transformer KCT micro clamp on ac current sensor 5-600a, KCT-6, KCT-10, KCT-16, KCT-24, KCT-36Item Code / Model Number:
KCT-6, KCT-10, KCT-16, KCT-24, KCT-36
HEYI split core current transformer KCT micro clamp on ac current sensor 5-600a
Features:
1:The structure of the self-locking, safe, easy to install, portable
2:Wide inner window, allowing clamping of big cables or bus-bars
3:Wide range of sizes to accommodate all the existing installations
4:Isolated plastic case recognized according to UL94-V0
5:Wires plugs,Audio plugs,Power plugs and so on five kinds of plugs
Applications:
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.
3:Current, power and energy monitoring device.
4:Relay protection device.
MODEL KCT-6
Current Ratio: 5A/2.5mA,10A/5mA,20A/10mA
Class 0.5/1.0
MODEL KCT-10
Current Ratio: 5A/2.5mA, 20A/10mA, 60A/20mA, 75A/25mA, 1~75A/0.333V
Class:0.5/1.0
MODEL KCT-16
Current Ratio: 100A/33.3mA, 100A/40mA, 120A/40mA, 200A/66.7mA, 100~200A/0.333V
Class 0.5/1.0
MODEL KCT-24
Current Ratio: 100A/40mA, 200A/40mA, 200A/66.7mA, 400A/80mA, 100~400A/0.333V
Class 0.5/1.0
MODEL KCT-36
Current Ratio: 300A/100mA, 400A/40mA, 500A/50mA, 600A/60mA, 300~600A/0.333V
Class 0.5/1.0
Website: http://www.heyiele.com/Catalogue/KCT_Split_core_current_transformer-113.html
1:The structure of the self-locking, safe, easy to install, portable
2:Wide inner window, allowing clamping of big cables or bus-bars
3:Wide range of sizes to accommodate all the existing installations
4:Isolated plastic case recognized according to UL94-V0
5:Wires plugs,Audio plugs,Power plugs and so on five kinds of plugs
Applications:
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.
3:Current, power and energy monitoring device.
4:Relay protection device.
MODEL KCT-6
Current Ratio: 5A/2.5mA,10A/5mA,20A/10mA
Class 0.5/1.0
MODEL KCT-10
Current Ratio: 5A/2.5mA, 20A/10mA, 60A/20mA, 75A/25mA, 1~75A/0.333V
Class:0.5/1.0
MODEL KCT-16
Current Ratio: 100A/33.3mA, 100A/40mA, 120A/40mA, 200A/66.7mA, 100~200A/0.333V
Class 0.5/1.0
MODEL KCT-24
Current Ratio: 100A/40mA, 200A/40mA, 200A/66.7mA, 400A/80mA, 100~400A/0.333V
Class 0.5/1.0
MODEL KCT-36
Current Ratio: 300A/100mA, 400A/40mA, 500A/50mA, 600A/60mA, 300~600A/0.333V
Class 0.5/1.0
Website: http://www.heyiele.com/Catalogue/KCT_Split_core_current_transformer-113.html
- Place of Origin:
- ä¸å½
- Brand:
- HEYI
- Unit Price:
- USD Nil
- Price Terms:
- EXW NingBo/ShangHai
- Packing:
- Export cartons
- Payment Terms:
- T/T
- Payment Remarks:
- Paypal, WesternUnion
- Delivery Time:
- 7-14 days
- Min Order Quantity:
- 10pcs
- Standard / Certificates:
- HEYI Electrical Co., Ltd.
- Keywords:
- split core current transformer, ac current sensor, current transformer
