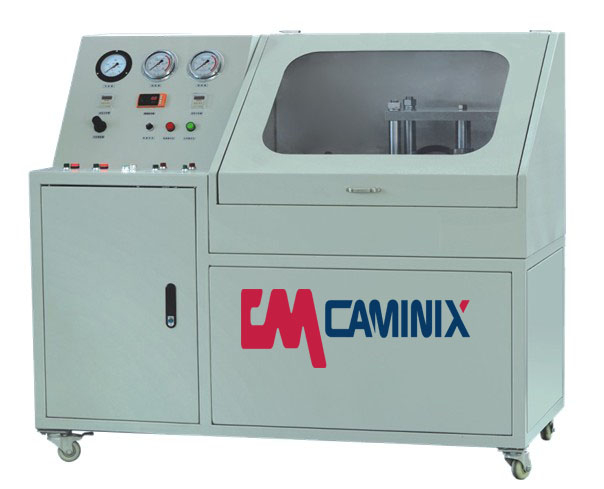

Valve Pressure Test Bench

This test bench is used to test the ball valve gate valve globe valve angle valve Strength testing, according to China GB/T 8464-2008 standard, automatic control movements status all data reading through touch screen with testing data accuracy 100%, easy operation and simple loading and unloading.

Item Specification Test Object
1 1/2’’-2’’ Ball Valve, Gate Valve, Globe Valve, Nozzle, Angle Valve Etc
2 2’’-4’’ Ball Valve, Gate Valve, Globe Valve, Nozzle, Angle Valve Etc
3 Customized As per customer request

Products Specification Valve Pressure Test Bench
Model Name VPTB
Test Item All kinds of Brass & SS Ball /Gate /Globe /Angle valves etc
Outside Dimension （Approx） 1600*750*1350(mm)
Outside Structure Materials Carbon Steel Structure and Painting
Working Power Supply 380V 50HZ,Single Phase DC24V,or Customized
Working Air Pressure 0.6-0.8Mpa ( External)
Working Water Pressure 1-15Mpa 1-30Mpa ( As per customer)
Test Table Double Tables
Water Pump Air Driven Liquid Booster Pump ( China Brand)
Materials of Fixture Carbon Steel
Fixture Type 1/2’’-2’’ Cylinder Clamping, 2’’-4’’ Manual Bolting
