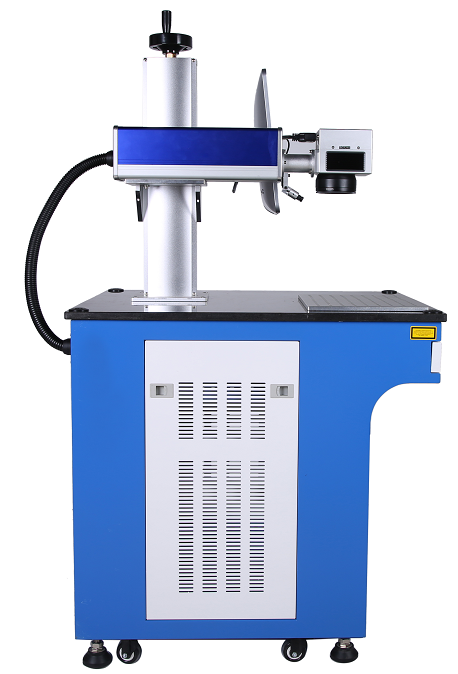

20w fiber laser marking machine

20w fiber laser marking machine, pl100
Item Code / Model Number:
pl100

20w fiber laser marking machine 20w fiber laser marking machine
Introduction:
Used for engraving metal and some non-metal material,specially used in the area which need high demand of the depth,smoothness and accuracy
1.Long working life of the fiber lasers means little servicing
2.Small compact air-cooled lasers
3.Excellent laser beam quality
4.Red-light position determination system to make the positioning more convenient and accurate
5.Function expending according to customer needs,such as rotary marking,XY electric working table,automatic feeding equipment and so on
Laser Power: 10W/20W Marking Depth: ≤0.3mm
Laser Wavelength: 1060nm Marking Speed: ≤7000mm/s
Beam Quality: <2 (M2) Marking Area: 100X100mm 、150X150mm
Laser Type: pulsed or continued Minium Character: 0.15mm
Working Life: More than 100,000hours for lasers Minium Line width: 0.012mm
Cooling System: Air Cooled Repeat Accuracy: ±0.002
Power Consumption: 500W Repeat Frequency: 20-100KHZ
Temperature: 10°C-35°C Operating System: Win98/Win2000/WinXP
Humidity: 5%-75% Interface: Standard USB
Product Dimension: 570mmX270mmX200mm File Format: All formats compatible with MS Windows
Weight: <27kg Working mode: Marking automatically by computer control
  • Unit Price:
  • USD 2800
  • Price Terms:
  • FOB shanghai
  • Payment Terms:
  • L/C;D/A;T/T;M/T
  • Delivery Time:
  • 7 days
  • Min Order Quantity:
  • 1
  • Keywords:
  • laser marking machine, laser engraving machine
