ultrasonic wind speed and direction sensor
ultrasonic wind speed and direction sensor, WXA100-02Item Code / Model Number:
WXA100-02

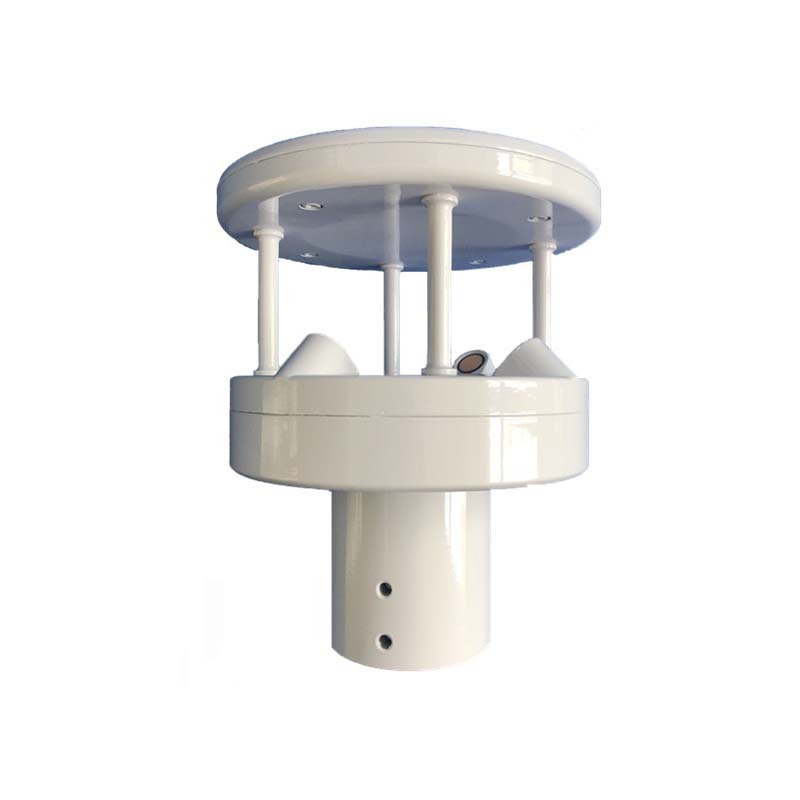

WXA100-02 ultrasonic wind speed&direction sensor is a portable digital sensor developed by our company combined with years of experience in meteorological product development and using the latest wind measurement technology (ultrasonic).
The sensor can measure wind speed and direction at the same time. It has the characteristics of compact structure, no moving parts, sturdiness and durability, easy installation and maintenance-free features. It is an intelligent design specially designed for a wide range of meteorological products and inconvenient on-site installation and maintenance sensor.
Technical data:
Measurement parameters
Range
Response time
Output resolution
Accuracy
Available variables
Wind speed
0-360º
0.25 s
0.1 º
±3 º
Average, Maximum, and Minimum
Wind direction
0-60m/s
0.25 s
0.05m/s
±0.3/±3%
Average, Maximum, and Minimum
Model
Type
Interface
Operating temperature
Power consumption
Relative humidity
Air Pressure
WXA100-02
Ultrasonic
RS485/RS232
-40 … +85 °C
8...15mA at 12VDC
0-100 %RH
10-1100hPa
The sensor can measure wind speed and direction at the same time. It has the characteristics of compact structure, no moving parts, sturdiness and durability, easy installation and maintenance-free features. It is an intelligent design specially designed for a wide range of meteorological products and inconvenient on-site installation and maintenance sensor.
Technical data:
Measurement parameters
Range
Response time
Output resolution
Accuracy
Available variables
Wind speed
0-360º
0.25 s
0.1 º
±3 º
Average, Maximum, and Minimum
Wind direction
0-60m/s
0.25 s
0.05m/s
±0.3/±3%
Average, Maximum, and Minimum
Model
Type
Interface
Operating temperature
Power consumption
Relative humidity
Air Pressure
WXA100-02
Ultrasonic
RS485/RS232
-40 … +85 °C
8...15mA at 12VDC
0-100 %RH
10-1100hPa
- Place of Origin:
- China
- Unit Price:
- USD 500
- Price Terms:
- FOB guangzhou, beijing
- Payment Terms:
- L/C;D/A;T/T
- Delivery Time:
- 3-5 days
- Min Order Quantity:
- 1 pcs
- Standard / Certificates:
- CE,ISO9001
- Keywords:
- wind speed sensor, wind direction sensor
