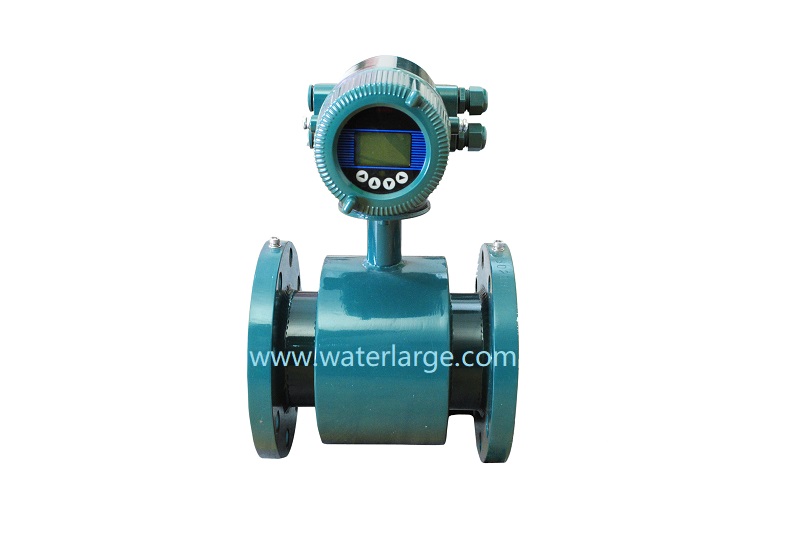

W-M3000F Flange Type Electromagnetic Flow Meter

I.Feature
1.Self-diagnosis
2.Power failure record
3.Alarm（Empty，excitation，high&low etc.)
4.Language and colors can be customized

II.Technical parameter

DN size(mm) DN3 - DN3000(1/8" to 118 1/9")
Measuring range 0 to 10 m/s
Accuracy ±0.5%FS（±0.2%，±0.3% optional）
Measuring medium Liquid or solid-liquid phase medium with a conductivity higher than 5μs/cm.
Operating pressure Max. 40 bar (Max. 580 psi)
Ambient temperature -20 - 60 °C (-4 - 140 °F)
Medium temperature -20 - 150 °C (-4 - 300 °F)
Liner Neoprene /PTFE/Hardrubber/Polyurethane/F46/PFA/Ceramic
Electrode SS316
Hastelloy B
Hastelloy C
Titanium
Tantalum
Pltinum-iridium
Tungsten carbide
Material Carbon steel
Enclosure sensor IP67
IP68 - optional
Signal output 4~20mA and pulse.
Communications RS485, Modbus, RS232, HART, Profibus, GPRS, etc.
Transmitter Large LCD with backlight
Cable No need
Earth ring SS316 (Optional)
Flange standard DIN, ANSI, JIS, GB,etc..
Power supply 12V-24V DC, 85-250V AC, 3.6V battery power, solar power, wind power.
