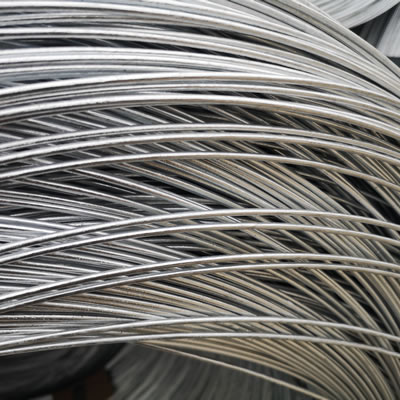

Galvanized Spring Wire

Spring steel wires can be oil hardened and tampered spring steel wire, bright spring steel wire and carbon spring steel wires.
Wire Materials: Steel 65MN, 60Si2MnA, 55CrSi, 50CrV, T2B.
Wire Diameter: 0.20 - 17.00 mm.
Application: For car suspending spring, motorcycle vibration reducing spring, engine door spring and high strength, high flexibility and high weary life spring.
Production Standard: Our spring steel wires meet the following standards: ASTM A401,ASTM A401M,EN 10270-2, or according to the user's technical qualification.
Packing: In coils of certain weight according to customers' requirements.

Everbright is the leading spring wire manufacturer in China, one of best galv steel wire supplier for making ACSR and wire springs in China. Our main customers are in mattress and automobile industries. We have 54 sets CNC spring manufacturing machines, 6 sets of wire forming machines. View more on our website.

Common sizes we supply for export are 0.20mm to 8mm wire size.
Fine wires sizes are from 0.20mm to 0.70mm.

Everbright manufactures spring steel wires materials meeting following standards:
1)Carbon Spring Steel Wire according to EN-10270-1.
2) Oil Tempered Spring Steel Wire according to EN-10270-2 .
3) Stainless Steel Spring Wire according to EN-10270-3.

Specifications:

Galvanized spring steel wire manufactured to astm a227
Class 1 tensile with type 2 uniform zinc coating of not less than 0.3 ounces / ft2 of surface area
Wire should be packaged on reel-less cardboard core with the following specifications:
a) No less than 6 banding straps shall hold the wire reel (spaced evenly)
b) Core i.d. 14.000 + 0.063 / - 0.000
c) Core length 11.000
d) Wire reel width 11.500 + 0.000 / - 0.5000
e) Wire reel weight 900 lbs min. & 1000 lbs max.
Notes:

Wire diameter, "galvanized wire" description, & quietflex part no. to appear on the packaging & inner core of each roll.
Wire not to be soft wound.
Mark the leading end of wire with tag
Wire Diameter and Core Sizes

Wire Dia. for 6" & 7" Core: 0.41 for 25'
Added 3" Core Wire Size Specs for 25' Only
Wire Dia. for 9" & 10" Core: .041 for 25'
Wire Dia. for 4" & 5" Core: .048 for 25'
Wire Dia. for 14" Core: .054 for 25'
Wire Dia. for 16" Core: .052 for 25'
