Vehicle Gps Tracker

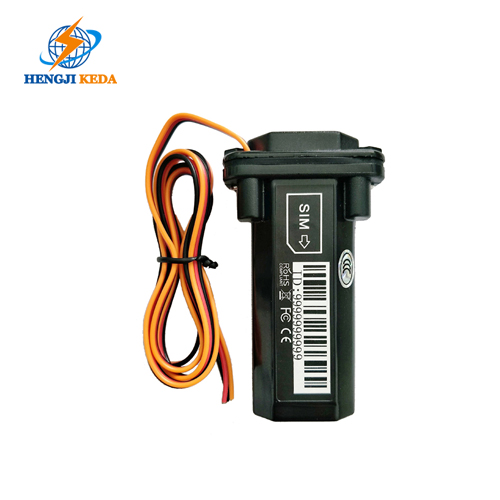

HengJi KeDa TK02 is a water resistant GPS tracker with smart design and technology.It can achieve continuous accurate positioning, real-time tracking, track playback, electric fence, data statistics and other functions.It is ideal for outdoor use such as motorcycle and E-bike.Lear more at: https://www.hengjikeda.com/

Product Features
Tracked by: SMS, APP, Web (Reports position in real time through different interfaces)
GPS+BD+LBS positioning (Precise positioning with accuracy of 5 meters)
9V~75V voltage range (Wide operating voltage)
IP67 waterproof (Water-resistant case to ensure stable operation in tough environment)
Multiple alarms (Instant alert for vibration, overspeed, power off, geo-fence)
ACC detection (Be aware of the ignition status whenever you need)

Specification
Communication Character:

Frequency 850/900/1800/1900 MHz
GPRS Class 12, TCP/IP
Max output GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3dBm
Max frequency error ±0.1ppm
SIM Card Standard SIM card
Aerial Internal

GPS/BD Positioning Character:

Module/Chip MTK high sensitivity chip
Frequency GPS L1, 1575.42MHz C/A code
Location accuracy <10 meters
Sensitivity(tracking) 162DBM
Sensitivity(Acquisition) -149DBM
Aerial Internal
TTFF(open sky) Avg.hot start≤1sec
Avg.cold start≤32sec

Others

Battery Capacity 140mAh/3.7V Polymer battery
Working voltage/current 9V~75VDC/30MA-60MA
Work Temp -30℃~75℃
Storage Temp -30℃~80℃
Work Humidity 5%-95%
Device weight g
Device dimension (L)*(W)*(H)mm
Gross weight g
Box dimension (L)*(W)*(H)mm
