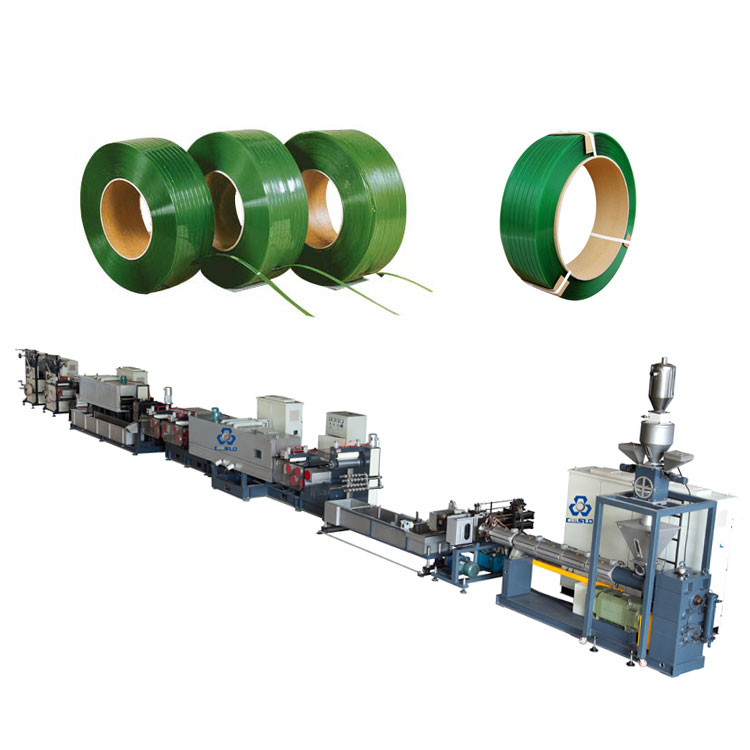

Fully Automatic PET Strap Extrusion Line

Email address:ru@cisscomachine.com Whatsapp:+8613661521337
1.Raw material: 100% recycled or virgin PET flakes (viscosity≥0.75)
Raw material reference technology parameters
Raw material type A: 100%
Recycled PET PET bottle chips
IV 0.70-0.78dl/g
Quantity According to ENUNI10667 or WI24954798CEN/TC249
Size Average value: 1-8mm,
Content of material (≤1mm): ≤1%
Content of material (≥8-20mm): ≤4%
Density 0.35-0.40kg/dm3
Original water content ≤0.4-0.6%, 4000-6000ppm
PE PP content ≤15ppm (caps and labels)
Paper, wood content ≤15ppm
Adhesive content ≤10ppm
Metal content ≤10ppm
Other inorganic ion content ≤10ppm
PVC content ≤30ppm
PH value 7.5-8
Raw material type B: 0.5-3%
Raw Material Particles additives
Material shape Cylindrical
Size Φ2/3×2/3（H）mm
Density 0.50-0.60kg/dm3
Raw material C 0.5-3%
Raw Material Particles additives
Material shape Cylindrical
Size Φ2/3×2/3（H）mm
Density 0.50-0.60kg/dm3
2.Parameters of straps:
2.1.Width: 9 - 25mm
2.2.Thickness: 0.6-1.27mm
2.3.Breaking strength: ＜ 50kg/mm²
2.4.Elongation rate: 10-15%
2.5.Width tolerance: ±0.45mm (China national standard: ±0.76mm)
2.6.Thickness tolerance: ±0.05mm (China national standard: ±0.06mm)
3.Extrusion parameter:
3.1.4straps: Width 9-16mm, T<1mm
3.2.2straps: Width19-25mm, T >1mm
3.3.1 strap: Width26-32mm, T >1mm
3.4.Extrusion output: 300kg/h
3.5.Production line speed: ≤120m/min ×4/2
4.Electricity: AC380v/3HP/50Hz±10% L1+L2+L3+N+PE
5.Installed power: Appr. 445kw (working capacity 265kw)
6.Workers required: 3-4 persons
7.Overall dimension: 46m×5m×5.5m
