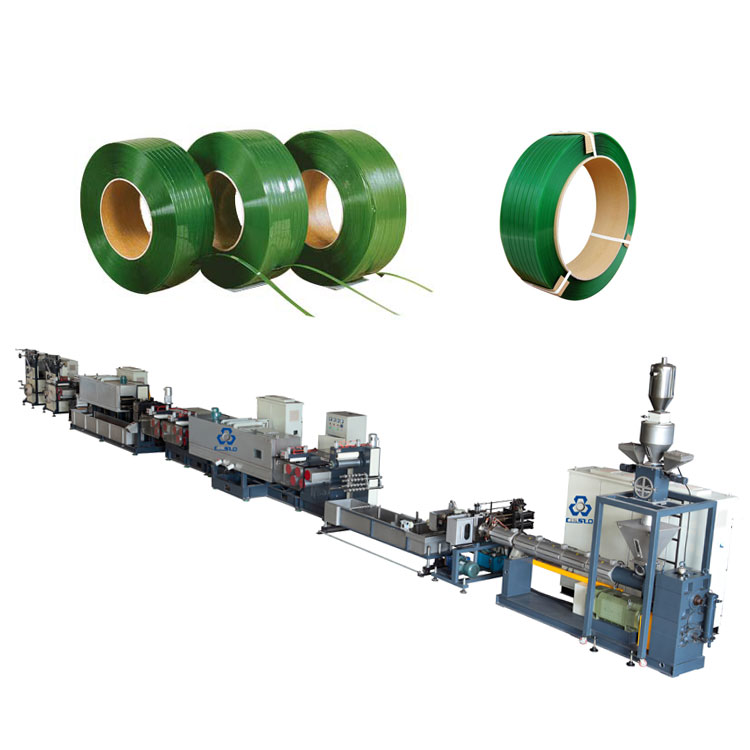

Sell Fully Automatic PET Strap Extrusion Line, CS

Email address:ru@cisscomachine.com Whatsapp:+8613661521337 1.Raw material: 100% recycled or virgin PET flakes (viscosity≥0.75) Raw material reference technology parameters Raw material type A: 100% Recycled PET PET bottle chips IV 0.70-0.78dl/g Quantity According to ENUNI10667 or WI24954798CEN/TC249 Size Average value: 1-8mm, Content of material (≤1mm): ≤1% Content of material (≥8-20mm): ≤4% Density 0.35-0.40kg/dm3 Original water content ≤0.4-0.6%, 4000-6000ppm PE PP content ≤15ppm (caps and labels) Paper, wood content ≤15ppm Adhesive content ≤10ppm Metal content ≤10ppm Other inorganic ion content ≤10ppm PVC content ≤30ppm PH value 7.5-8 Raw material type B: 0.5-3% Raw Material Particles additives Material shape Cylindrical Size Φ2/3×2/3（H）mm Density 0.50-0.60kg/dm3 Raw material C 0.5-3% Raw Material Particles additives Material shape Cylindrical Size Φ2/3×2/3（H）mm Density 0.50-0.60kg/dm3 2.Parameters of straps: 2.1.Width: 9 - 25mm 2.2.Thickness: 0.6-1.27mm 2.3.Breaking strength: ＜ 50kg/mm² 2.4.Elongation rate: 10-15% 2.5.Width tolerance: ±0.45mm (China national standard: ±0.76mm) 2.6.Thickness tolerance: ±0.05mm (China national standard: ±0.06mm) 3.Extrusion parameter: 3.1.4straps: Width 9-16mm, T1mm 3.2.2straps: Width19-25mm, T >1mm 3.3.1 strap: Width26-32mm, T >1mm 3.4.Extrusion output: 300kg/h 3.5.Production line speed: ≤120m/min ×4/2 4.Electricity: AC380v/3HP/50Hz±10% L1+L2+L3+N+PE 5.Installed power: Appr. 445kw (working capacity 265kw) 6.Workers required: 3-4 persons 7.Overall dimension: 46m×5m×5.5m
