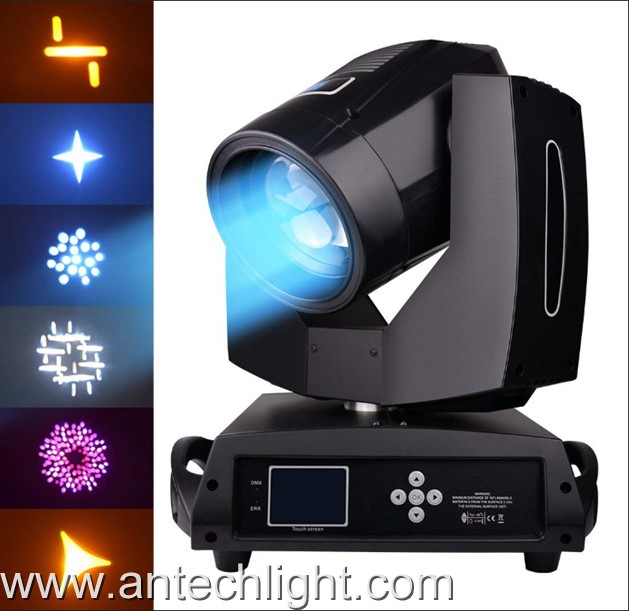

230W LED Beam Moving Head ATM230

LED Beam Moving Head stage lighting ATM230

Source

Lamp:230W 7R Color temperature: 8000K Average Lifespan: 2000H

Parameter

Color: 14 color + blank Gobo: 17 fixed gobo + blank

Prism: rotation 8-face prism, Bilateral rotation,with zoom

Lens: high precision optical lens

Dimmer: 0-100% linear dimmer

Strobe: 1-12 times/s double strobe

Display: Touch screen

Motor Quantity: 11pcs Super-Silent Motor, 16 bit drive

Control Mode: Auto / Sound/ DMX / Master-slave

DMX: 16/20CH

Movement range

Pan/Tilt : X axis 540° Electric correction Y axis 270° Electric correction

with auto-correction function

speed adjustment

Scanning speed:X axis – 5 s, Y axis – 3 s

Beam angle: 8° X / Y axis

Parrallel beam: 0-3.8°

Function

Macro functions : Reset/ lamp on or off can be controlled by controller

Other functions

Thermal shutdown circuit

Over-current Protection Circuit

Excellent ventilation and cooling effect by vertical axis fan

Lamp usage time display

Built-in error analyzer

Input signal isolating protection
