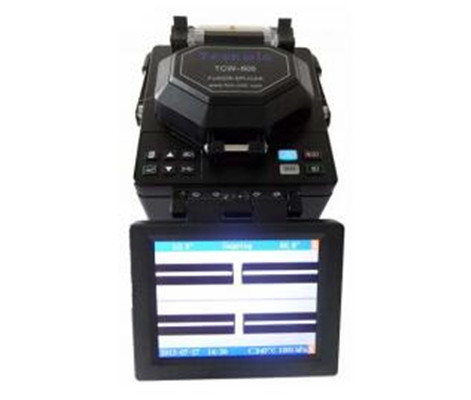

Techwin Fusion Splicer for construction of optical cable maintenance

Techwin Fusion Splicer for construction of optical cable maintenance
wwwdottechwin-chinadotcom
We will try our best to provide products similar to Fujikura Fusion Splicer, Sumitomo Fusion Splicer, FITEL Fusion Splicer, INNO Fusion Splicer, ILSINTECH Fusion Splicer, FiberFox Fusion Splicer.
How About This Product?
The TCW-605E Series adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.

The Uses:
• The TCW605E Series Fusion Splicer have been using in English, Spanish, Portuguese, French, Italian, German, Arabic, Russian, Korea, Japanese, etc.
• Widely used for SM and MM Quartz Fiber with diameter 80-150μm(300μm optional), coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.
• Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.

Detailed Introduction:
• Not only a Fusion Splicer, but also your partner who make your job easy and happy
• 5.0 inch TFT color LCD monitor with anti-reflective coating
• The advanced core to core fiber profile alignment system(PAS)
• ARC Calibration FREE system. ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary
• X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times
• 8 seconds splicing time, 30 seconds Heat-Shrinking

Technical Specifications:
• Average Splicing Loss : 0.02dB with G.652 and G.657, 0.01dB with G.651 and 0.04dB with G.653 and G.655
• Splicing Time : Typical splicing time:8s
• Heating Time : Typical heating time:30s
• Return Loss : 60dB or greater
• Fiber Coating : 100μm to 1000μm
