Explain

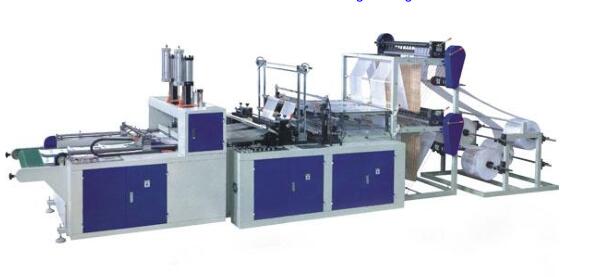

It is a fully automatic bag making machine, especially in vest bag making. It works together with an automatic puncher. The machine is high speed, fully automatic, nice in perfomance. It can automatically feed, seal, cut and punch vest shape.

FEATURE:
1.The cutting knife adopts spring minitrim installation,which make is easy for adjusting
clearance between the above and the below cutter knife while manufactrue products with
various thickness.
2. The seal blade may be adjusted conveniently and be wholly overturn by 180
degree,which make it convenient for cleaning and replacing adhesive plaster.
3.Adopt digitize electric,matched with high-precise and high quality mechanical parts,fix
length at will,so as to reach the purpose of high speed,saving energy and durability.
4.Synchronous seal and cold cut,no pull feeding,firm back cover.
5.Adopt high quality magic eyes tracing system for tracking the print bags

Technical parameters:
Max bag width( blank) ：400mm *4
Max bag width( color) ：400mm*2
Bag length ：350-600mm
Error of length ：±0.5mm
Film thickness： 0.05-0.10mm
Max speed ：120pcs/min X4
Gross power ：220V 15KW
External dimension ：6000× 1500×1850mm
weight 1700KG
