TEC cable(Tubing Encapsulated Cable)
TEC cable(Tubing Encapsulated Cable), TEC CableItem Code / Model Number:

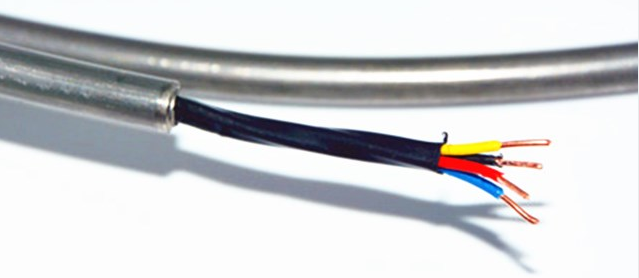

TEC Cable

TEC cable is one of our popular products, our advantages as below:
1. Designed & Custom manufactured specifically for the Oil & Gas Market.
2. Competitive prices, lower than Canada, USA and UK manufacturer.
3. It has been tested by many customers with excellent long - term reliability.
4. Various conductor size & configurations. Solid core or stranded core conductors.
5. Annealed, corrosion resistant, tubing alloys tailored for each application.(Three common raw materials: 316L, Duplex 2205, Alloy 825.)
6. Various polymer insulations(FEP, PFA, PTFE or others)
7. Stringent manufacturing quality control process.
Sample Parameters A:
18AWG SINGLE CONDUCTOR STAINLESS STEEL TUBE
SQUARE ENCAPSULATION 15,000 PSI SYSTEM
INSULATION: FEP INSULATION
JACKET: PP MATERIAL
TUBE: 1/4" x 0.028" 316L STAINLESS STEEL
ENCAPSULATION: TRO-PP 11mm SQUARE
A. 18#AWG 7/0.39mm Tin Coated Copper: OD 1.16mm (0.046") Nominal
B. FEP INSULATION:OD 2.49mm (0.098") Nominal
C. PP JACKET: OD 4.92mm (0.194") Nominal
D. 316L STAINLESS STEEL TUBE: WALL THICKNESS:0.71mm(0.028"),OD 6.35mm(0.250") Nominal
E. TRO-PP ENCAPSULATION: 11MM Square
1. Designed & Custom manufactured specifically for the Oil & Gas Market.
2. Competitive prices, lower than Canada, USA and UK manufacturer.
3. It has been tested by many customers with excellent long - term reliability.
4. Various conductor size & configurations. Solid core or stranded core conductors.
5. Annealed, corrosion resistant, tubing alloys tailored for each application.(Three common raw materials: 316L, Duplex 2205, Alloy 825.)
6. Various polymer insulations(FEP, PFA, PTFE or others)
7. Stringent manufacturing quality control process.
Sample Parameters A:
18AWG SINGLE CONDUCTOR STAINLESS STEEL TUBE
SQUARE ENCAPSULATION 15,000 PSI SYSTEM
INSULATION: FEP INSULATION
JACKET: PP MATERIAL
TUBE: 1/4" x 0.028" 316L STAINLESS STEEL
ENCAPSULATION: TRO-PP 11mm SQUARE
A. 18#AWG 7/0.39mm Tin Coated Copper: OD 1.16mm (0.046") Nominal
B. FEP INSULATION:OD 2.49mm (0.098") Nominal
C. PP JACKET: OD 4.92mm (0.194") Nominal
D. 316L STAINLESS STEEL TUBE: WALL THICKNESS:0.71mm(0.028"),OD 6.35mm(0.250") Nominal
E. TRO-PP ENCAPSULATION: 11MM Square
- Place of Origin:
- China
- Brand:
- ESPCS
- Packing:
- Wooden or Metal Spool
- Payment Terms:
- T/T
- Keywords:
- downholed sensor cable, tubing encapsulated cable
