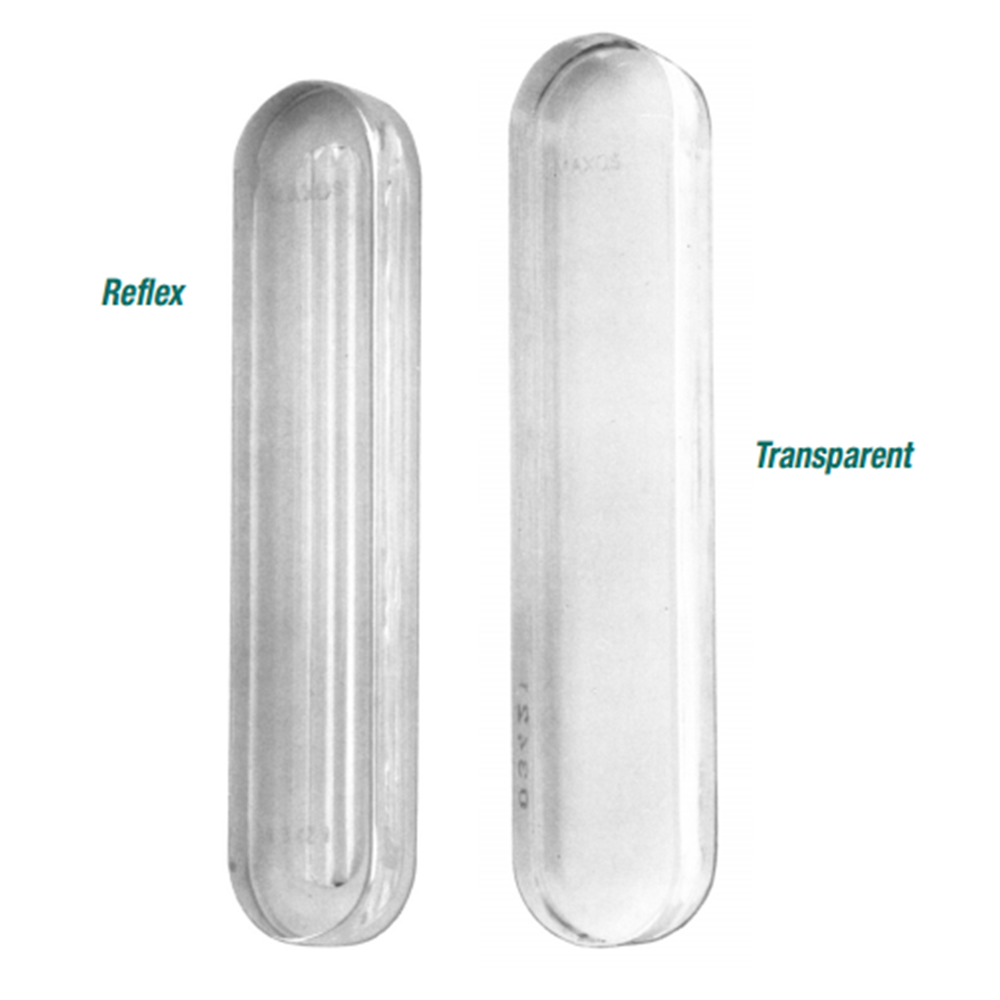

B9 340x34x17mm Reflex Gauge Glass

Reflex level gauge glass is made from High Borosilicate, They are used in level gauge in boiler for water position. Reflex type one side facing the medium chamber is provided with molded grooves set at 90 degree angles. The molding process increases the resistance of the glass grooves to wear; the skin which the glass attains during molding gives it maximum smoothness and hardness.This makes it extremely resistant to the attack of boiler water.


It can be used with all media at service conditions up to 4MPa and temperature up to 430 degrees Celsius.

It is also named: Reflex Gauge Glasses, Sight glasses, Reflex Glasses,Reflex sight glasses, Spares For level Gauge.



REFLEX GAUGE GLASS


SIZE Type A
L B S
0 - - -
I 115 30 17
II 140 30 17
III 165 30 17
IV 190 30 17
V 220 30 17
VI 250 30 17
VII 280 30 17
VIII 320 30 17
IX 340 30 17
X 370 30 17
XI 400 30 17
SIZE Type B
L B S
0 95 34 17
I 115 34 17
II 140 34 17
III 165 34 17
IV 190 34 17
V 220 34 17
VI 250 34 17
VII 280 34 17
VIII 320 34 17
IX 340 34 17
X 370 34 17
XI 400 34 17
