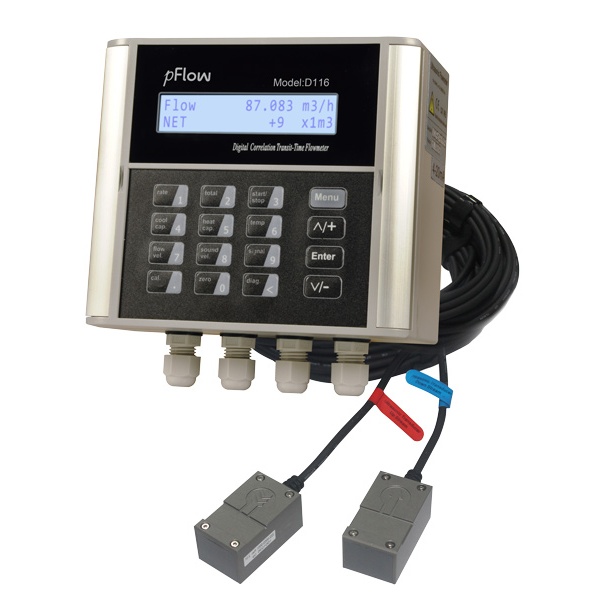

Pflow D116 Ultrasonic Flowmeter

Key Specifications/Special Features:

Overview:
Ultrasonic flowmeter D116 liquid flow meter is optimized for customers still looking for high performance, but needing a lower-cost, less feature-rich option for dedicated clamp-on ultrasonic metering.
Ultrasonic flowmeter D116 digital liquid flow meter optimizes the measurement of water as it flows in irrigation, supply system and other liquid applications.
Common applications include:
Water and wastewater measurements
Leak detection in piping systems
Contactless product recognition
Interface detection
Automated process control
Specifications:
Accuracy: +/-1.0% of reading from 0.03 to 16fts (0.01 to 5m/s)
Repeatability: +/-0.3% of reading
Wide turndown ratio
Bi-directional flow range of 0.03 to 16 ft/s (0.01 to 5m/s)
Pipe sizes from 1 to 48 inches (25 to 1200mm)
Process pipe-wall temperature: 32 to140F (0 to 60C)
Power supply: 10 to 24 V AC or 10 to 36 V DC at 1A
Output signals: 4-20mA
Pulse (configurable)
Relay (configurable)
Digital communications: RS-232, RS-485, Modbus RTU
Materials:
Enclosure NEMA 4X (IP65), die-cast aluminum
Transducers IP68 (encapsulated)
Standard cable length: 30ft (9m)
Maximum cable length: 100ft (30m)
