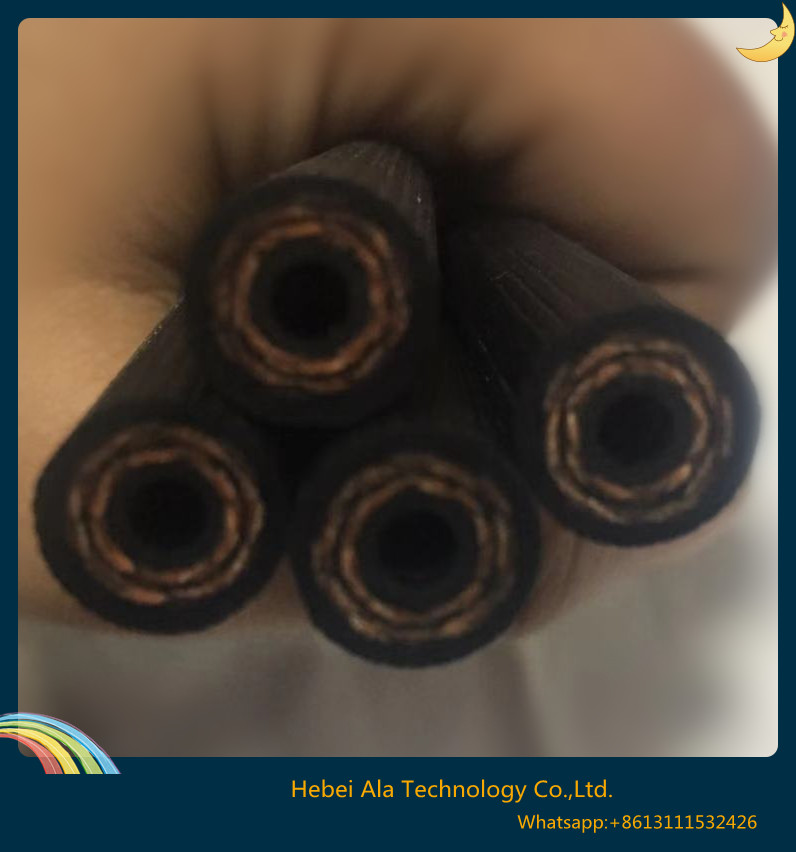

SAE J1401 1/8'' 3.2mm Brake Hoses

SAE J1401 1/8'' 3.2mm Brake Hoses, HS Code :40093100
Item Code / Model Number:
HS Code :40093100

SAE J1401 1/8'' 3.2mm Brake Hoses SAE J1401 1/8'' 3.2mm Brake Hoses
SAE J1401 1/8'' 3.2mm Brake Hoses
Hebei Ala Technology Co., Ltd. Hose department, Eva@ala-global.com
whatsapp:+8613111532426 china_hose@126.com www.china-rubber-hose.com


SAE J1401 1/8'' 3.2mm Brake Hoses Structure:

TYPE HL
Inner rubber layer EPDM
First fabric layer PVA
Middle rubber layer EPDM
Second fabric layer PVA
Outer rubber layer EPDM


SAE J1401 1/8'' 3.2mm Brake Hoses Qualitive compatibility:

Flexible brake hose for hydraulic non-petroleum based brake systems of road vehicles, manufactured according to standards SAE J 1401 and FMVSS 106. Marking: SAE J 1401 1/8 HL. Same quality as original products!

SAE J1401 1/8'' 3.2mm Brake Hoses Applicable technical parameters:

Inside, nominal diameter: less than 4 mm
Test pressure:
air: 10.3 MPa – 14.5 MPa / not less than 10, not more than 25 sec
brake fluid: 20.7 MPa – 24.8 MPa / not less than 10, not more than 25 sec
Bursting pressure: minimum 49 MPa
Tensile strength test:
more than 1446 N, at 25±3 mm/min stretching rate
more than 1646 N, at 50±3 mm/min stretching rate
Field of application:

Hydraulic brake systems of road vehicles, passenger cars, vans, off-road vehicles and some types of motorcycles, depending on the vintage (production year), fuel type and brake system. More than 2700 types, unique and kitting presentation, small and big series as well.
  • Place of Origin:
  • China
  • Brand:
  • Hebei Ala Technology Co., Ltd.Hose Group
  • Unit Price:
  • USD 0.5
  • Price Terms:
  • FOB 0.55
  • Other Price Terms:
  • CIF,DDP,EXW
  • Packing:
  • 250m in one roll packaged in one box
  • Payment Terms:
  • L/C;D/A;T/T;M/T;D/D;D/P
  • Payment Remarks:
  • Hebei Ala Technology Co., Ltd Hose department
  • Delivery Time:
  • 20 days
  • Min Order Quantity:
  • 5000meters
  • Standard / Certificates:
  • CCC
  • Keywords:
  • sae j1401 brake hoses, brake hoses
