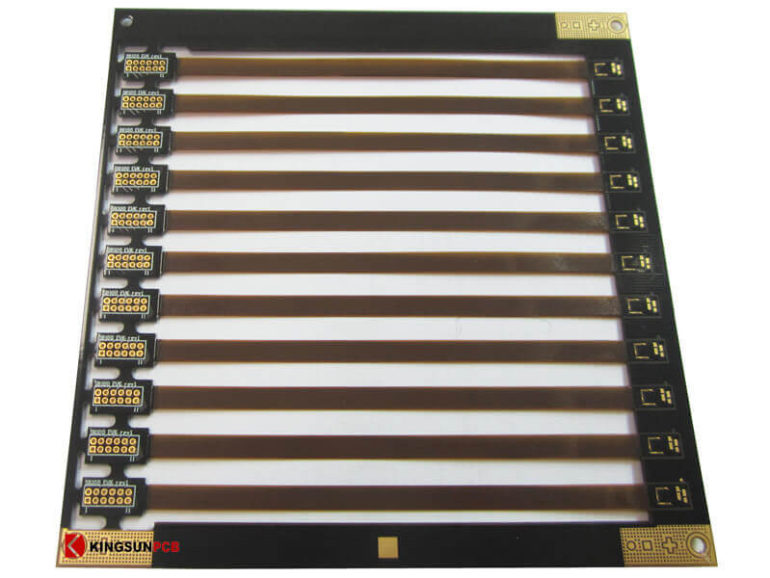

Rigid-flex PCB connector

Rigid-flex PCB connector, A001
Item Code / Model Number:
A001

Rigid-flex PCB connector Rigid-flex PCB connector
Rigid-flex PCB connector:

Layers : 4 Layer
PCB Material: FR4 High Tg, Polyimide
FPC thickness:0.15mm
Rigid Board Thickness: 1.6mm
Surface Finishing: Immersin Sn
Finished Copper thickness: 1/1/1/1 OZ

Special Process:
Rigid-Flex PCB
Small bonding pad 0.1mm
ENEPIG surface is good for bonding

Rigid-Flex PCB Capability:

Minimum Circuit Trace Width/Space: 2.7/2.7mil
The Minimum Via Size : 0.15mm
The Minimum legend Height/Width: 0.5mm/0.12mm
Surface Finishing: HASL-LF, ENIG,ENEPIG,OSP,Gold Finger,Hard Gold Plating,Immersion Silver,Immersion Tin
Special Technology: Blind&buried via, Via In Pad,Backdrill,Small BGA Pad,Impedance control,Heavy Copper,Copper Filled Vias,Countersink hole,Depth Milling
Material Type: FR4,Metal Core,Halogen Free FR4,Rogers,PTFE,Arlon,Nelco,Polyimide
Final Board Thickness: 0.4mm ~ 6.0mm
Final Copper Thickness: HOZ 1OZ 2OZ 3OZ 4OZ 6OZ 10OZ
FR4 Substrate Thickness: 0.1mm 0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.36mm
Shaping: CNC Routing,Punching,V-CUT, Depth milling, Castellation
Special Hole: Blind&buried hole,Depth milling,T-slot,Countersink hole
  • Place of Origin:
  • China
  • Brand:
  • King Sun
  • Unit Price:
  • USD 2
  • Price Terms:
  • FOB Shenzhen
  • Packing:
  • Vacuum Packing
  • Payment Terms:
  • T/T
  • Min Order Quantity:
  • 1
  • Standard / Certificates:
  • ISO9001:2005 , UL
  • Keywords:
  • rigid-flex pcb
