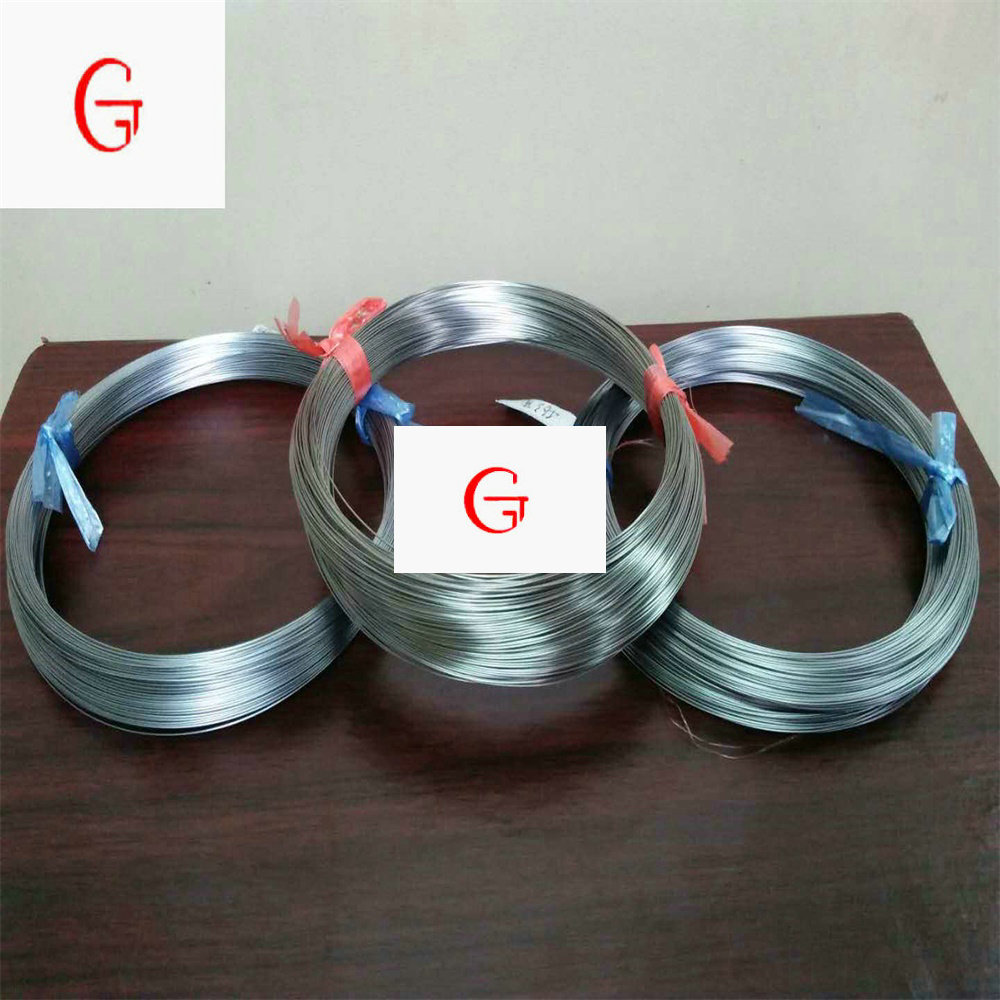

High quality Tungsten Rhenium Thermocouple wire
High quality Tungsten Rhenium Thermocouple wire , GT 01Item Code / Model Number:
GT 01
High quality Tungsten Rhenium Thermocouple wire
Tungsten Rhenium Thermocouple Wire
Product Name: WRe3-WRe25; WRe5-WRe26;WRe5-WRe20
Index Number: WRe3-WRe25 (Type D); WRe5-WRe26 (Type C); WRe5-WRe20 (Type A)
Production Grade,Specification,Temperature Range,Deviation:
Thermoelectromotive Tolerance for Type D,Type C
Grade Specification (mm) Temperature Range (℃) Deviation
Ⅰ Φ0.08；Φ0.1 1500-1800 ±0.125%t℃
Φ0.5 400-2315 ±0.5%t
Ⅱ
Φ0.08；Φ0.1 1500-1800 ±0.25%t℃
Φ0.5 400-2315 ±1%℃
Thermoelectromotive Tolerance for Type A
Grade Specification (mm) Temperature Range (℃) Deviation
Ⅰ Φ0.5 400-2500 ±0.5%t
Ⅱ Φ0.5 400-2500 ±1%t
Product Name: WRe3-WRe25; WRe5-WRe26;WRe5-WRe20
Index Number: WRe3-WRe25 (Type D); WRe5-WRe26 (Type C); WRe5-WRe20 (Type A)
Production Grade,Specification,Temperature Range,Deviation:
Thermoelectromotive Tolerance for Type D,Type C
Grade Specification (mm) Temperature Range (℃) Deviation
Ⅰ Φ0.08；Φ0.1 1500-1800 ±0.125%t℃
Φ0.5 400-2315 ±0.5%t
Ⅱ
Φ0.08；Φ0.1 1500-1800 ±0.25%t℃
Φ0.5 400-2315 ±1%℃
Thermoelectromotive Tolerance for Type A
Grade Specification (mm) Temperature Range (℃) Deviation
Ⅰ Φ0.5 400-2500 ±0.5%t
Ⅱ Φ0.5 400-2500 ±1%t
- Place of Origin:
- China
- Brand:
- GT
- Price Terms:
- FOB Shanghai
- Other Price Terms:
- T/T in advance
- Packing:
- Plastic bag inside,paper carton outside
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 20 working days
- Min Order Quantity:
- 1 Meter
- Keywords:
- tungsten rhenium wire, thermocouple wire, temperature measurement
