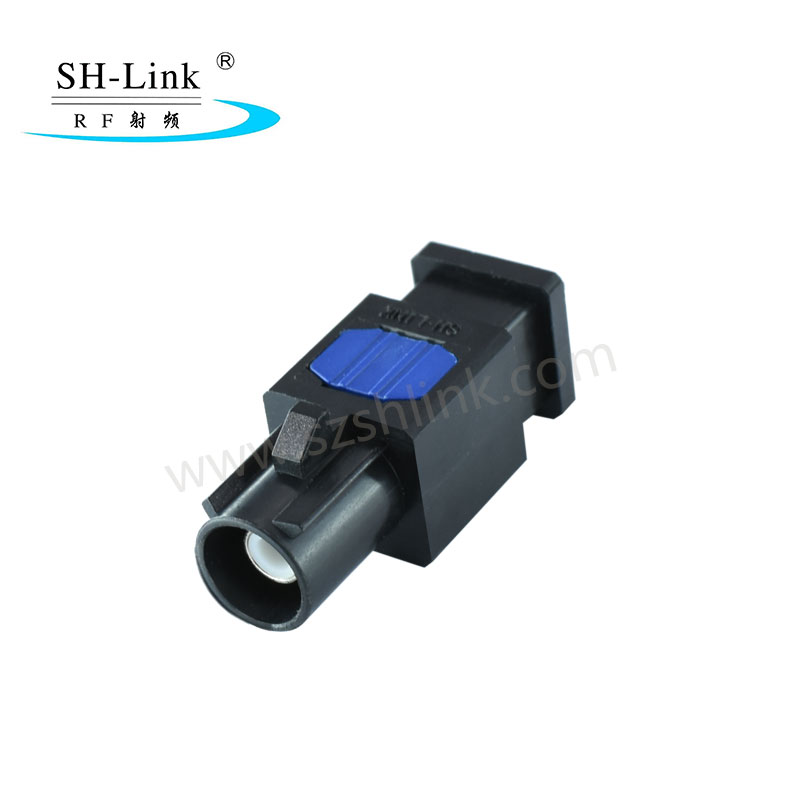

Fakra A Male Black Crimp Solder Connector for Car GPS Antenna RG316 RG174 Cable
Fakra A Male Black Crimp Solder Connector for Car GPS Antenna RG316 RG174 Cable, SHM.900.0009-1.AItem Code / Model Number:
SHM.900.0009-1.A
Fakra A Male Black Crimp Solder Connector for Car GPS Antenna RG316 RG174 Cable
Description:
FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.
Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
• The product technical characteristics:
Body: Brass, Ni-plated
Socket: beryllium-copper, Gold-plated
Pin contact: Brass
Insulator: PTFE
Crimp ferrule: brass, Ni-plated
O-ring: beryllium-copper
Shell: PA66+30%GF
• Technical characteristics
Impedance: 50Ω
Frequency Range: 4GHz
Withstanding Voltage: 1000V(RMS)
Contact resistance:
Center contact: ≤ 20m
Outer contact: ≤10m
Insulation: ≥1,000MΩ
VSWR: DC - 2GHz<1.2
• Mechanical characteristics:
Assembly: locked
Durability: ≥ 500 cycles
Temperature: - 40 - +85°C
FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.
Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
• The product technical characteristics:
Body: Brass, Ni-plated
Socket: beryllium-copper, Gold-plated
Pin contact: Brass
Insulator: PTFE
Crimp ferrule: brass, Ni-plated
O-ring: beryllium-copper
Shell: PA66+30%GF
• Technical characteristics
Impedance: 50Ω
Frequency Range: 4GHz
Withstanding Voltage: 1000V(RMS)
Contact resistance:
Center contact: ≤ 20m
Outer contact: ≤10m
Insulation: ≥1,000MΩ
VSWR: DC - 2GHz<1.2
• Mechanical characteristics:
Assembly: locked
Durability: ≥ 500 cycles
Temperature: - 40 - +85°C
- Place of Origin:
- China
- Brand:
- SH-Link
- Unit Price:
- USD 0.6
- Price Terms:
- FOB Shenzhen
- Packing:
- PE Bag
- Payment Terms:
- T/T;Cash
- Delivery Time:
- 3-5 days
- Min Order Quantity:
- 100pcs
- Standard / Certificates:
- ISO9001, ISO14001, IATF16949
- Keywords:
- fakra connector, fakra types, conectores fakra
